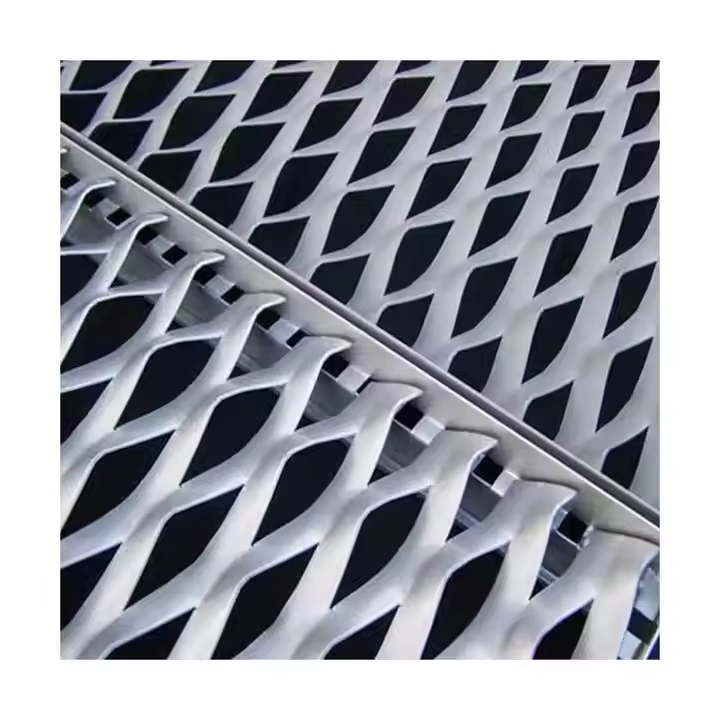

316 Stainless Steel Expanded Metal

Description

This sheet is made of 304 stainless steel plate by cutting first, then stretching to form a diamond opening, and finally flattening, with uniform thickness and a smooth surface. It can freely pass light, liquid, sound and air, suitable for decorative and high-precision applications. In addition, it is often used in architectural decoration, food processing, chemical equipment, filters, etc.

Application：

Machinery guards
Flooring
Walkways
Shelving
Window protection

Need a custom quote

or more information about this product? Contact our sales staff today!

Product Specification

Specification

Dimension Name	Value
Max Width	48
Max Length	120
Style	According to Your Requirement
Opening Size	According to Your Requirement
Open Area	According to Your Requirement
Diamond Size	According to Your Requirement
Alloy	316
Material	Stainless Steel
Shape	Sheet-Expanded

Mechanical Properties

Property	Value
Ultimate Tensile Strength (KSI)	82
Density (g/cm³)	8
Rockwell Hardness (B Scale)	95
Brinell Hardness (3000 kg load)	210
Yield Tensile Strength (KSI)	37
Shear Strength (KSI)	58
Electrical Conductivity (% IACS)	2
Elongation (%) in 2 in.	52
Melting Point (°F)	2500 – 2550
Machinability (%)	36
