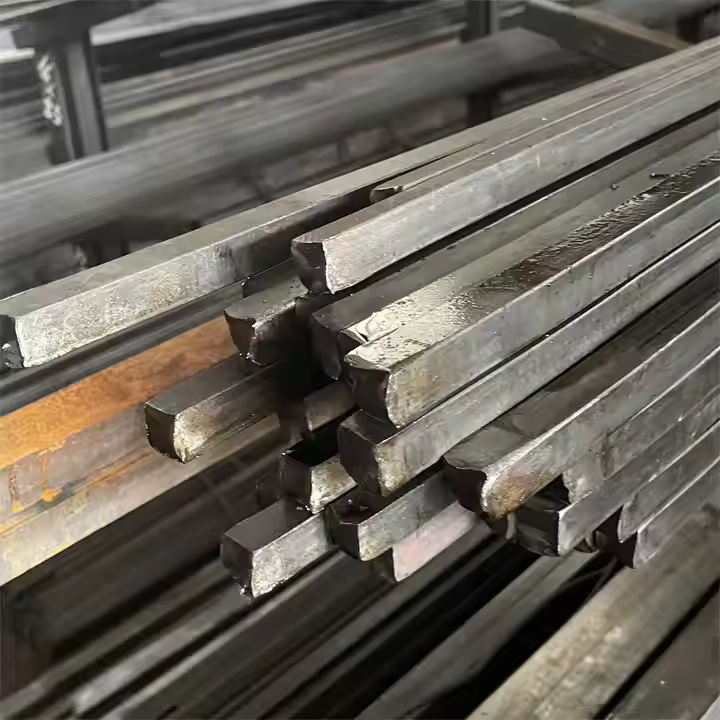

6mm 7mm 8mm 10mm 12mm Square Bar

Description

The stainless steel square bars with side lengths of 6mm, 7mm, 8mm, 10mm and 12mm are usually made of stainless steel alloys such as 201, 301, 304, 316, etc. The stainless steel square bars are corrosion-resistant, stain-resistant, and rust-resistant. The square structure gives the product higher strength and uniformity. They are often used in situations where high strength and stability are required.

Application：

Aerospace
Automotive
Medical and gas/oil/oil applications

Need a custom quote

or more information about this product? Contact our sales staff today!

Product Specification

Specification

Dimension Name	Value
Height	6mm / 7mm / 8mm / 10mm / 12mm
Length	1-6m, 5.8m, 6m or as required
Tolerance	±1%
Alloy	301L, 301, 316L, 316, 304, 304L, 201
Shape	Bar-Square
Surface Finish	bright, annealed, polishing, HL
Standard	ASTM, EN, GB, JIS

Mechanical Properties

Grade	Standard (ASTM/EN/JIS/GB)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)	Modulus of Elasticity (GPa)
301L	ASTM A240 301L / 1.4318 / SUS301L / 06Cr17Ni7	515–670	170–310	40–60	≤217	193
301	ASTM A240 301 / 1.4310 / SUS301 / 06Cr17Ni7	515–620	205–310	40–60	200–230	193
316L	ASTM A240 316L / 1.4404 / SUS316L / 022Cr17Ni12Mo2	485–620	170–310	30–40	≤217	193
316	ASTM A240 316 / 1.4401 / SUS316 / 06Cr17Ni12Mo2	515–720	205–275	45–60	180–220	193
304	ASTM A240 304 / 1.4301 / SUS304 / 06Cr19Ni10	515–620	205–310	40–60	180–200	193
304L	ASTM A240 304L / 1.4307 / SUS304L / 022Cr19Ni10	485–620	170–310	40–58	≤217	193–200
201	ASTM A240 201 / 1.4372 / SUS201 / 12Cr17Mn6Ni5N	520–690	275–345	45–55	200–230	193

Chemical Composition

Grade	Standard (ASTM/EN/JIS/GB)	Chromium (Cr) (%)	Nickel (Ni) (%)	Molybdenum (Mo) (%)	Other Elements (%)
301L	ASTM A240 301L / 1.4318 / SUS301L / 06Cr17Ni7	16.0–18.0	6.0–8.0	—	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S)
301	ASTM A240 301 / 1.4310 / SUS301 / 06Cr17Ni7	16.0–18.0	6.0–8.0	—	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S)
316L	ASTM A240 316L / 1.4404 / SUS316L / 022Cr17Ni12Mo2	16.0–18.0	10.0–14.0	2.0–3.0	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S), Nitrogen (N)
316	ASTM A240 316 / 1.4401 / SUS316 / 06Cr17Ni12Mo2	16.0–18.0	10.0–14.0	2.0–3.0	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S)
304	ASTM A240 304 / 1.4301 / SUS304 / 06Cr19Ni10	18.0–20.0	8.0–10.5	—	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S), Nitrogen (N)
304L	ASTM A240 304L / 1.4307 / SUS304L / 022Cr19Ni10	18.0–20.0	8.0–12.0	—	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S), Nitrogen (N)
201	ASTM A240 201 / 1.4372 / SUS201 / 12Cr17Mn6Ni5N	16.0–18.0	3.5–5.5	—	Manganese (Mn), Silicon (Si), Carbon (C), Nitrogen (N), Phosphorus (P), Sulfur (S)
