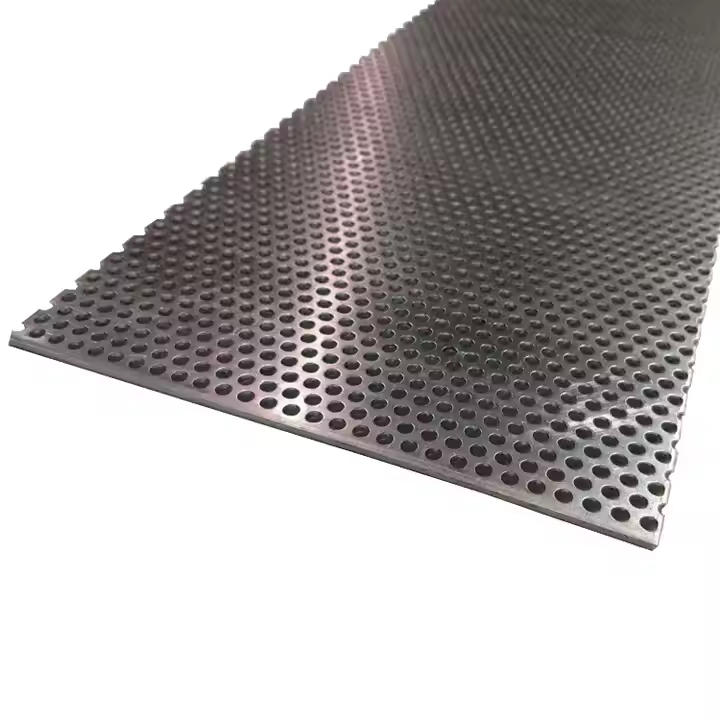

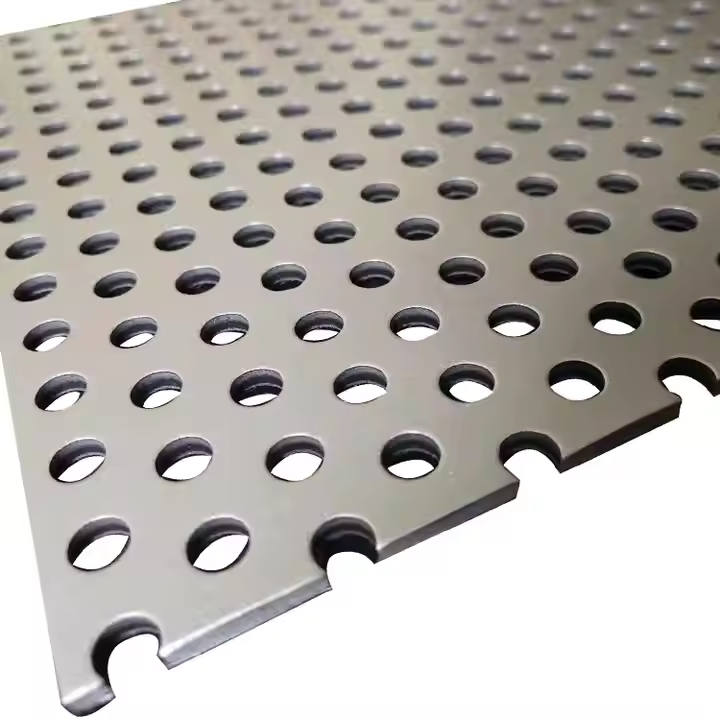

Perforated Stainless Steel Sheet 4×8
Description
This 4×8 inch perforated plate is typically composed of 306 or 316 stainless steel by punching, which has the characteristics of corrosion resistance, high strength, and easy cleaning. Its surface will also be galvanized and used as protective net, building net, filter, decorative net, oil/gas/water filter net, etc., suitable for construction, the chemical industry, pharmaceuticals, and other fields.
Application：
- Protective net
- Construction net
- Filter
- Decorative net
- Oil/Gas/Water filter
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Hole Shape | According to Your Requirement |
| Hole Size | According to Your Requirement |
| Length | According to Your Requirement |
| Specification | 4×8 |
| Alloy | 304 |
| Material | Stainless Steel |
| Shape | Sheet-Perforated |
Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 8 |
| Ultimate Tensile Strength (KSI) | 85 |
| Yield Tensile Strength (KSI) | 35 |
| Rockwell Hardness (B Scale) | 92 max |
| Brinell Hardness (3000 kg load) | 195 max |
| Elongation (%) in 2 in. | 55 |
| Melting Point (°F) | 2550 – 2651 |
| Shear Strength (KSI) | 56 |
| Machinability (%) | 40 |
| Electrical Conductivity (% IACS) | 2 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 max |
| Cr | 20 |
| Fe | 66.34 – 74 |
| Ni | 8 – 10.5 |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
