Stainless Steel Expanded Metal For Grill
Description

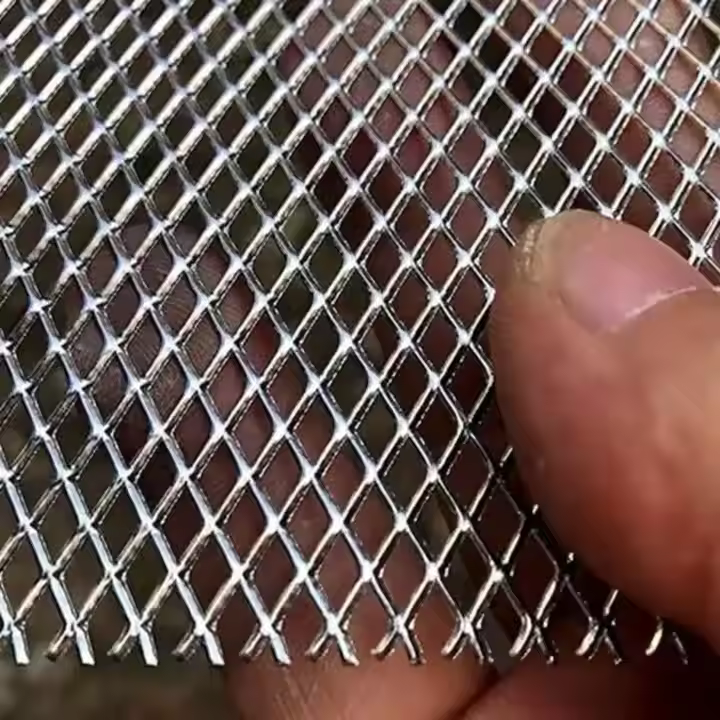

Expanded stainless steel is an ideal grilling net. The stainless steel plate is cut first and then stretched to form a diamond-shaped opening, which finally forms a net shape, which can evenly heat the food when grilling. In addition, the stainless steel material makes it both high-strength and corrosion-resistant, easy to install, and can be used repeatedly.
Application：
- Outdoor barbecue net
- Food drying rack
- Smoke furnace liner
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Material | stainless steel |
| Alloy | 304 |
| Hole Patterns | Diamond, hexagon |
| Hole Size (mm) | 3X4, 4×6, 6X12, 5×10, 8×16, 7×12, 10X17, 10×20, 15×30, 17×35 or customized |
| Thickness | 0.2-1.6mm or customized |
| Width | 25, 33, 40 cm or customized |
| Length | 31, 40, 50 cm or customized |
| Quality Control | ISO Certificate |
Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 8 |
| Ultimate Tensile Strength (KSI) | 85 |
| Yield Tensile Strength (KSI) | 35 |
| Rockwell Hardness (B Scale) | 92 max |
| Brinell Hardness (3000 kg load) | 195 max |
| Elongation (%) in 2 in. | 55 |
| Melting Point (°F) | 2550 – 2651 |
| Shear Strength (KSI) | 56 |
| Machinability (%) | 40 |
| Electrical Conductivity (% IACS) | 2 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 max |
| Cr | 20 |
| Fe | 66.34 – 74 |
| Ni | 8 – 10.5 |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
