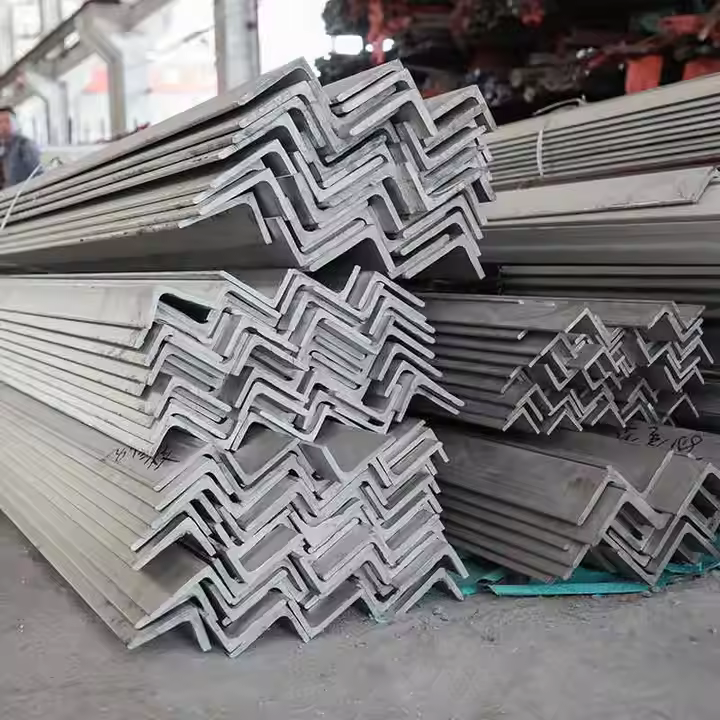

1 16 Thick Stainless Steel Angle

Description

This thin, angle bar is strong and highly resistant to rust and corrosion. It’s made from stainless steel that includes chromium, nickel, and molybdenum, which helps it stand up to saltwater, food acids, and chemicals. Each leg of the angle is 1/16″ thick, with sharp 90° corners for clean structure. It meets ASTM A554 standards and can have brushed or polished finishes for use in food equipment. It’s strong enough (70,000 psi tensile strength) for boat railings, shelves, and protective guards in harsh environments.

Applications:

Trim
Moldings
Shelves
Brackets
Supports
Food processing equipment

Need a custom quote

or more information about this product? Contact our sales staff today!

Product Specification

Mechanical Properties

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)	Modulus of Elasticity (GPa)
AISI 304	515 – 720	205 – 275	45 – 60	180 – 220	193
AISI 316	515 – 720	205 – 275	45 – 60	180 – 220	193
AISI 410	485 – 690	240 – 345	15 – 25	210 – 260	200
AISI 430	450 – 620	220 – 310	18 – 28	190 – 240	200

Chemistry Composition

Grade	Chromium (Cr) (%)	Nickel (Ni) (%)	Molybdenum (Mo) (%)	Other Elements (%)
AISI 304	18.0 – 20.0	8.0 – 10.5	–	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S)
AISI 316	16.0 – 18.0	10.0 – 14.0	2.0 – 3.0	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S)
AISI 410	11.5 – 13.5	0.5 – 1.5	–	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S), Nitrogen (N)
AISI 430	14.0 – 18.0	0.2 – 1.0	–	Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S), Nitrogen (N)
