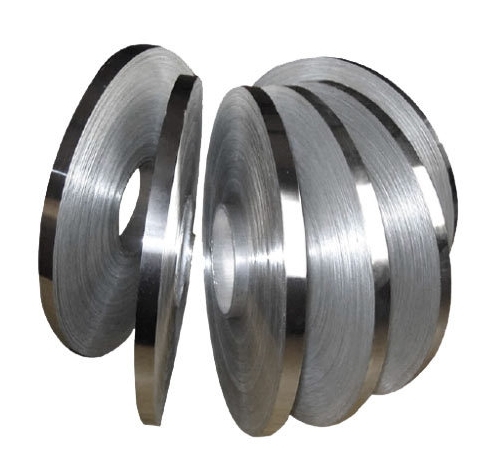

Stainless Steel Metal Strips
Jianglin supplies precision cold-rolled stainless steel trim strips in 201, 301, 304, 316, 410, and 430 grades. Your reliable stainless steel strip supplier from China.
Get Premium Stainless Steel Strips for Precision and Strength
Stainless steel metal strips are versatile, adaptable, and precise products. They are ideal for manufacturing pressed parts, electronics, automotive components, and other complex parts. Jianglin offers stainless steel strips in a variety of grades and sizes, including 201, 301, 302, 304, 316, and more. Custom sizes are also available to meet customer-specific requirements.
201 stainless steel has similar properties and ductility to 301 but offers higher yield strength. It is widely used in architectural applications, automotive trim, springs, and fasteners.
Density: 0.283 lbs/in³ | 7.81 g/cm³
Electrical Resistivity: 27.0 microhm-in | 68.5 microhm-cm
Specific Heat (32–212 °F / 0–100 °C): 0.12 BTU/lbs/°F | 0.50 kJ/kg/K
Comprising 17% chromium and 7% nickel, 301 stainless steel offers excellent strength and ductility, making it suitable for welding, forming, and drawing.
Applications: Aerospace components, automotive parts, construction, and more.
Standards:
ASTM/ASME: UNS S30200
EURONORM: X 12 CrNi 17 7
DIN: 1.4310
One of the most commonly used stainless steel grades is due to its excellent heat and corrosion resistance.
Applications: Precision machinery, electronic equipment, hardware, stamping parts.
Specifications: AISI 304/304L, ASTM A240, AMS 5513/5511
Finishes: 2B, No.4 Brushed, No.8 Mirror
410 stainless steel features high strength, hardness, and corrosion resistance.
Applications: Automotive exhaust systems, fasteners, valves, cutlery.
Standards:
ASTM/ASME: UNS S41000
EURONORM: FeMi35Cr20Cu4Mo2
DIN: 2.4660
904L offers high nickel and chromium content for superior corrosion resistance.
Applications: Chemical processing, oil and gas, pharmaceutical industry.
Specifications:
ASTM B625 UNS N08904
ASME SB625
ASTM A240 TP904L
SA240 TP904L
MSRR, AMS, BS
Produced through cold rolling and annealing, followed by edge deburring.
Applications: Mechanical cutting, precision machining, mould making, etc.
Finishes: 2B, No.4 Brushed, No.8 Mirror, Hairline, Polished.
Cold rolled and polished for a smooth finish with good corrosion resistance.
Applications: Automotive, construction, electronics
Finishes: 2B, No.4 Brushed, No.8 Mirror, Hairline, Polished
High strength and excellent formability.
Applications: Machine parts, bolts, construction, and more.
Product Specifications
JIS
ASTM
Size
JIS
| Steel Grade | C (Carbon) | Si (Silicon) | Mn (Manganese) | P (Phosphorus) | S (Sulfur) | Ni (Nickel) | Cr (Chromium) | Mo (Molybdenum) |
|---|---|---|---|---|---|---|---|---|
| SUS304 | ≤0.08% | ≤1.00% | ≤2.00% | ≤0.045% | ≤0.030% | 8.00–10.50% | 18.00–20.00% | – |
| SUS304L | ≤0.030% | ≤1.00% | ≤2.00% | ≤0.045% | ≤0.030% | 9.00–13.00% | 18.00–20.00% | – |
| SUS316 | ≤0.08% | ≤1.00% | ≤2.00% | ≤0.045% | ≤0.030% | 10.00–14.00% | 16.00–18.00% | 2.00–3.00% |
| SUS316L | ≤0.030% | ≤1.00% | ≤2.00% | ≤0.045% | ≤0.030% | 12.00–15.00% | 16.00–18.00% | 2.00–3.00% |
| SUS430 | ≤0.12% | ≤0.75% | ≤1.00% | ≤0.040% | ≤0.030% | – | 16.00–18.00% | – |
| SUS440C | 0.95–1.20% | ≤1.00% | ≤1.00% | ≤0.040% | ≤0.030% | – | 16.00–18.00% | – |
| SUS316Ti | ≤0.08% | ≤1.00% | ≤2.00% | ≤0.045% | ≤0.030% | 10.00–14.00% | 16.00–18.00% | 2.00–3.00% |
| SUS303 | ≤0.15% | ≤1.00% | ≤2.00% | ≤0.20% | ≥0.15% | 17.00–19.00% | 8.00–10.00% | – |
| SUS416 | ≤0.15% | ≤1.00% | ≤1.25% | ≤0.060% | ≥0.15% | 12.00–14.00% | ≤0.60% | – |
| SUS420 | 0.26–0.40% | ≤1.00% | ≤1.00% | ≤0.040% | ≤0.030% | – | 12.00–14.00% | – |
ASTM
| Designation | Common Name | C (Carbon) | Si (Silicon) | Mn (Manganese) | P (Phosphorus) | S (Sulfur) | Cr (Chromium) | Mo (Molybdenum) | Ni (Nickel) | Others |
|---|---|---|---|---|---|---|---|---|---|---|
| S30100 | 301 | 0.15 | 1 | 2 | 0.045 | 0.03 | 16.0–18.0 | – | 6.0–8.0 | N 0.10 |
| S30400 | 304 | 0.07 | 0.75 | 2 | 0.045 | 0.03 | 17.5–19.5 | – | 8.0–10.5 | N 0.10 |
| S30403 | 304L | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 17.5–19.5 | – | 8.0–12.0 | N 0.10 |
| S31600 | 316 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 16.0–18.0 | 2.00–3.00 | 10.0–14.0 | N 0.10 |
| S31603 | 316L | 0.03 | 0.75 | 2 | 0.045 | 0.03 | 16.0–18.0 | 2.00–3.00 | 10.0–14.0 | N 0.10 |
| S30300 | 303 | 0.15 | 1 | 2 | 0.2 | 0.15 min | 17.0–19.0 | – | 8.0–10.0 | – |
| S41600 | 416 | 0.15 | 1 | 1.25 | 0.06 | ≥0.15 | 12.00–14.00 | – | 0.60–1.00 | – |
| S440C | 440C | 0.95–1.20 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 16.00–18.00 | – | 0.75 max | – |
| S42000 | 420 | 0.26–0.40 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 12.00–14.00 | – | – | – |
| S20100 | 201 | 0.15 | 1 | 5.5–7.5 | 0.06 | 0.03 | 16.0–18.0 | – | 3.5–5.5 | N 0.25 |
| S20200 | 202 | 0.15 | 1 | 7.5–10.0 | 0.06 | 0.03 | 17.0–19.0 | – | 4.0–6.0 | N 0.25 |
Size
| Width | Thickness | Length | Width Tolerance |
|---|---|---|---|
| 3mm~2500mm | 0.01mm~20mm | Customized | +/-0.1mm |
Application Industries
automotive
Construction
machine Parts
More Details About Jianglin Stainless Steel Strips
Key Features of Stainless Steel Strips
Precision equipment, including imported flying shears, slitting machines, and laser cutters, ensures high-quality processing.
Over 3,000 tons of annual turnover and 1,000+ specifications in stock. All products comply with GB, JIS, and ASTM standards to meet global market demands.
How Stainless Steel Strips Are Made
- Step 1, raw material preparation and smelting: Scrap steel and ferroalloys (e.g., chromium, nickel) are melted in an electric arc furnace. Decarburisation and composition adjustments are made in AOD or VOD converters.
- Step 2, continuous casting and hot rolling: Molten steel is cast into slabs and hot-rolled at ~1200°C to enhance material uniformity.
- Step 3: Hot-rolled strips are cold rolled multiple times to reach the desired thickness (0.05–3mm). Straightened for flatness and dimensional accuracy.
- Step 4, Annealing and Pickling: Recrystallisation annealing restores ductility and removes work hardening. Pickled using nitric-hydrofluoric acid and polished for improved surface finish. Slitting
- Step 5: Wide strips are cut into custom widths (10–600mm) per customer request. Quality Control
- Step 6: Hardness testing, metallography, and corrosion testing ensure compliance with ASTM/EN standards.
FAQ
In the spirit of complete transparency, below you can find answers to some of the most frequently asked questions we receive regarding stainless steel.

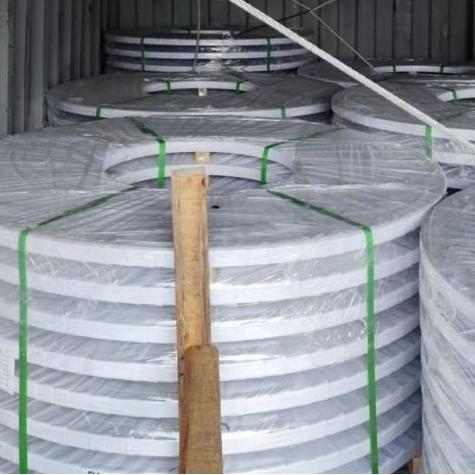

We use secure packaging such as wooden racks to stabilize the goods and prevent damage during transportation and unloading.
Yes, we accept all forms of L/C payments. Contact us for specific details.
Yes, we offer free samples. However, shipping costs must be covered by the customer.
For 0.3–16mm thick, 1219mm wide products: 3–5 days
For surface-processed products: 7–10 days, depending on order quantity
We can arrange shipment from Tianjin, Qingdao, Shanghai, and other major ports.
Check Our Knowledge Resources
Here’s some industry news & knowledge related to stainless steel strip
Smooth, bright, corrosion-resistant, high-temperature-resistant, and durable.
Flat Surface
