Inconel Alloys Product Supplier
Buy Inconel® Nickel Alloys from trusted China suppliers. We provide a wide range of Inconel series including Inconel 600®, 601®, 617®, 625®, 718®, and more.
Inconel Alloys Product

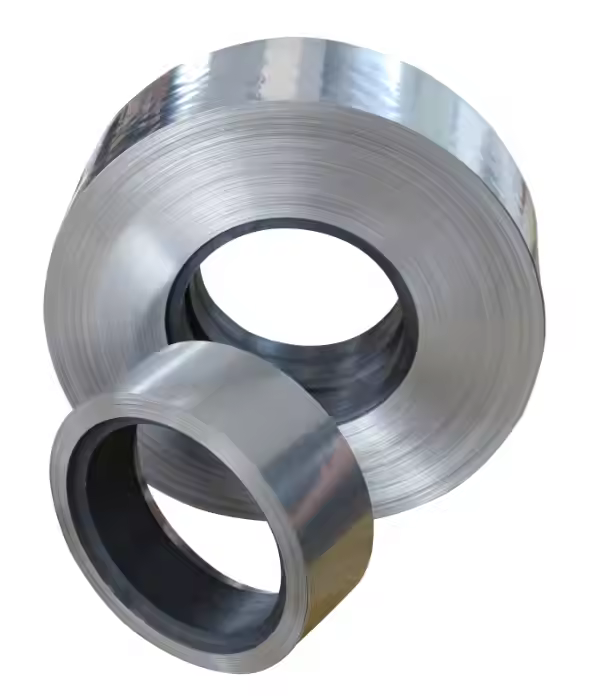

Inconel® is a nickel-based alloy composed primarily of chromium and iron, offering exceptional oxidation and corrosion resistance in extreme high and low-temperature environments. Available in various forms such as wire, plate, sheet, pipe fittings, bar, flanges, and more.
Ultimate Strength (≥ MPa): 790
Maximum temperature: 1093 Celsius
Resistance (μΩ.m): 1.15
Chemical Composition: Ni Fe Cr
Feature: High Resistance Temperature
Standard(s): ASTM B168
Ultimate Strength (≥ MPa): 730
Thickness: 8-100mm and customized size
Standard(s): ASTM A511/A511M
Resistance (μΩ.m): 1.28
Ultimate Strength (≥ MPa): 830
Elongation (≥ %): 30
Melting point: 1290-1350 ℃
Resistance (μΩ.m): 1.28
Ultimate Strength (≥ MPa): 830
Elongation (≥ %): 30
Melting point: 1290-1350℃
diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm
melting point: International Standard
customized support: OEM, ODM
Want to get Inconel expert support
Product Specifications
| Element | Inconel 600 (N06600) | Inconel 625 (N06625) | Inconel 718 (N07718) | Inconel 825 (N08825) |
|---|---|---|---|---|
| Nickel (Ni) | 72.0 min | 58.0 min | 50.0 – 55.0 | 38.0 – 46.0 |
| Chromium (Cr) | 14.0 – 17.0 | 20.0 – 23.0 | 17.0 – 21.0 | 19.5 – 23.5 |
| Iron (Fe) | 6.0 – 10.0 | 5.0 max | Balance | 22.0 min |
| Molybdenum (Mo) | — | 8.0 – 10.0 | 2.8 – 3.3 | 2.5 – 3.5 |
| Cobalt (Co) | — | 1.0 max | 1.0 max | 1.0 max |
| Titanium (Ti) | — | 0.4 max | 0.65 – 1.15 | 0.6 max |
| Manganese (Mn) | 1.0 max | 0.5 max | 0.35 max | 1.0 max |
| Silicon (Si) | 0.5 max | 0.5 max | 0.35 max | 0.5 max |
| Aluminum (Al) | — | 0.4 max | 0.2 – 0.8 | 0.2 max |
| Sulfur (S) | 0.015 max | 0.015 max | 0.015 max | 0.03 max |
| Carbon (C) | 0.15 max | 0.1 max | 0.08 max | 0.05 max |
| Copper (Cu) | — | — | 0.3 max | 1.5 – 3.0 |
| Boron (B) | — | 0.006 max | 0.006 max | — |
| Niobium (Nb) + Tantalum (Ta) | — | 3.15 – 4.15 | 4.75 – 5.50 | — |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 485 Maximum |
| Tensile Strength (PSI) | 70,300 Maximum |
| Yield Strength (MPa) | 275 Maximum |
| Yield Strength (PSI) | 39,900 Maximum |
| Hardness (Brinell, Metric, Imp) | 170 |
| Elongation (%) | 25% Maximum |
| Forging Stock, Wire, Bar, & Rod | Sheet, Plate, & Strip: | Pipe & Tube |
|---|---|---|
| ASTM B 166/ASME SB 166 | ASTM B 168/ASME SB 168 | ASTM B 546/ASME SB 546 |
| ASTM B 564/ASME SB 564 | DIN 17750 | VdTÜV 485 |
| DIN 17753 | VdTÜV 485 | ISO 6207 |
| VdTÜV 485 | SAE AMS 5888 | DIN 17751 |
| ISO 9724 | ISO 6208 | |
| DIN 17752 | SAE AMS 5889 | |
| SAE AMS 5887 | ||
| DIN 17754 |
Application industries & Products
Aerospace
Nuclear Reactor
Power Generation
Quality Certification
FAQ
In the spirit of complete transparency, here are some frequently asked questions we receive about Inconel®:
Before placing an order, we can provide a quality test report, or send samples to your country for third-party testing.
Since Inconel® is a highly valuable alloy with a complex manufacturing process, we charge material costs, and you will also need to cover the shipping fee.
The minimum order quantity is 1 ton.
