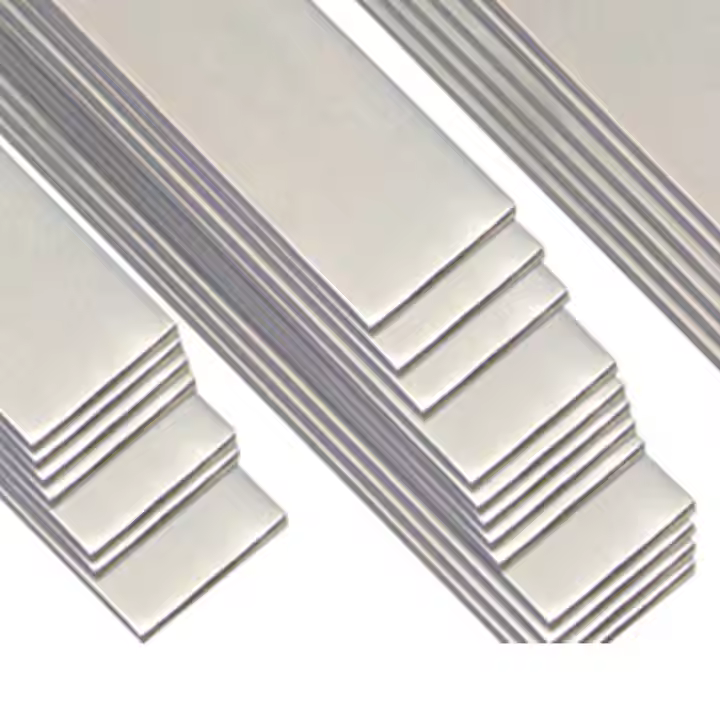

1 8 x 1 Stainless Steel Flat Bar
Description
This bar is great for food processing equipment, vehicle parts, and decorative pieces. It resists rust and is easy to weld and shape. It can be polished to a shiny finish, making it great for things like kitchen tools and store displays. It’s strong, flexible, and reliable for many different uses.
Applications:
- Vehicle chassis reinforcements
- Exhaust brackets
- Springs
- Fasteners
- Food processing conveyor guides
- Sanitary equipment frames
- Coastal building railings
- Corrosion-resistant facade clamps
- Wall paneling
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 75,000 psi (515 MPa) |
| Yield Strength | 30,000 psi (205 MPa) |
| Elongation | 60% in 2 inches (51 mm) |
| Hardness | 160 Brinell |
| Modulus of Elasticity | 28,000 ksi (193 GPa) |
| Melting Point | 2550 °F (1400 °C) |
Chemistry Information
| Element | Percentage |
|---|---|
| Chromium (Cr) | 18.00 – 20.00 |
| Nickel (Ni) | 8.00 – 10.50 |
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.030 max |
| Iron (Fe) | Balance |
