304 Hex Bar
Description

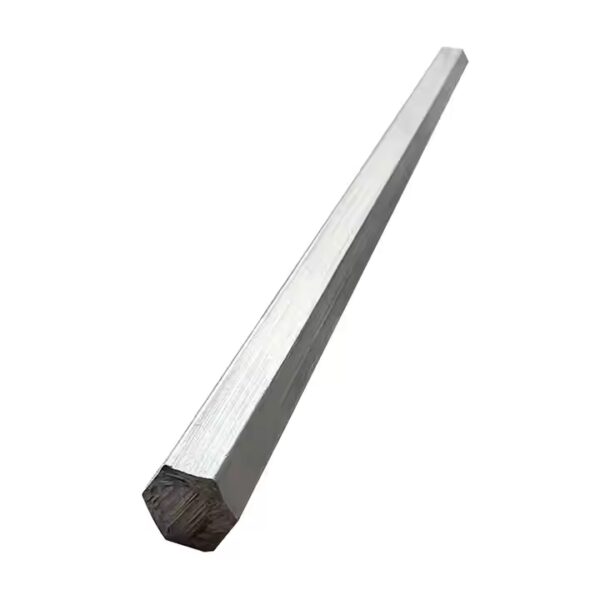

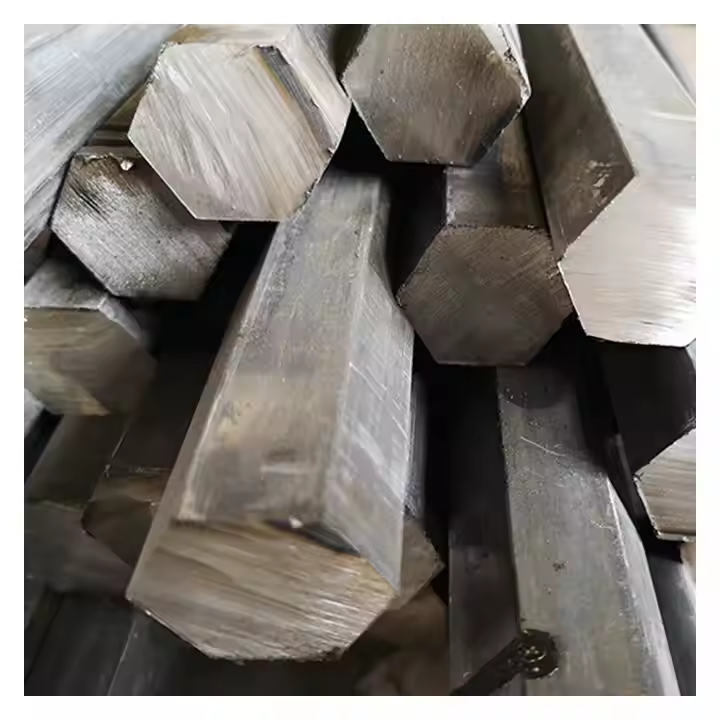

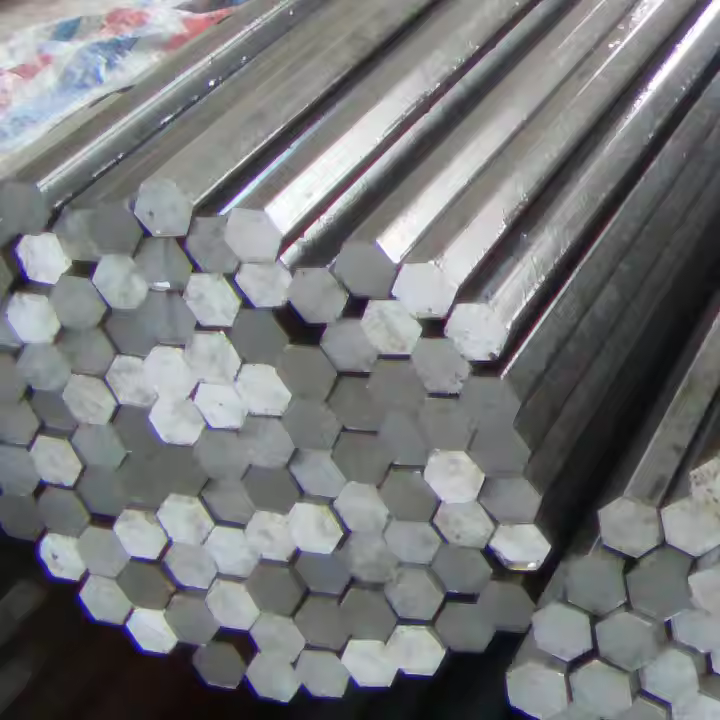

The hexagonal bar is made of 304 stainless steel, which is corrosion-resistant and can maintain its performance at high temperatures. It is the most common and popular stainless steel alloy with low cost. The hexagonal structure of the hexagonal bar provides enhanced grip, better torque transmission, and anti-rolling functions.
Application：
- Aerospace
- Food and beverage industry
- Pressure containers
- Architectural designs and trim
- Cryogenic applications
- Chemical processing equipment
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Max Length | customized |
| Across Flats | customized |
| Alloy | 304 |
| Temper | Annealed |
| Production Method | Cold Finish |
| Material | Stainless Steel |
| Shape | Bar-Hex |
Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 8 |
| Ultimate Tensile Strength (KSI) | 85 |
| Yield Tensile Strength (KSI) | 35 |
| Rockwell Hardness (B Scale) | 92 max |
| Brinell Hardness (3000 kg load) | 195 max |
| Elongation (%) in 2 in. | 55 |
| Melting Point (°F) | 2550 – 2651 |
| Shear Strength (KSI) | 56 |
| Machinability (%) | 40 |
| Electrical Conductivity (% IACS) | 2 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 max |
| Cr | 20 |
| Fe | 66.34 – 74 |
| Ni | 8 – 10.5 |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
