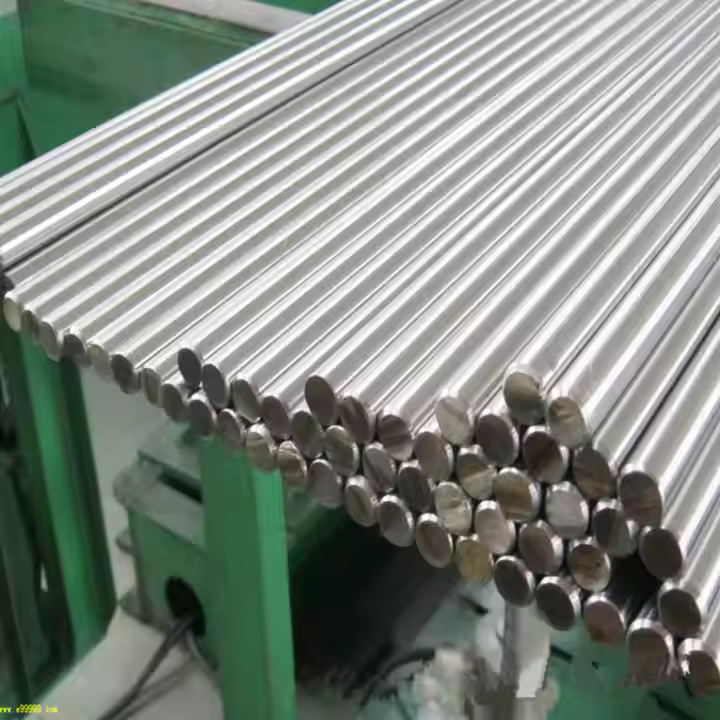

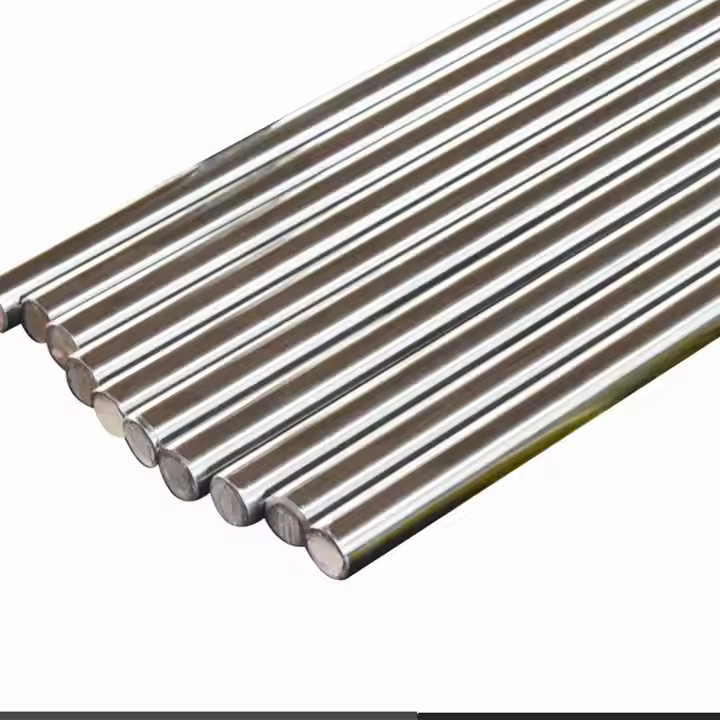

304 Stainless Steel Round bar
Description
This product is a metal round bar made of 304 stainless steel through hot rolling, cold drawing or forging processes. It has excellent corrosion resistance, weldability and versatility, and is widely used in machinery manufacturing and construction as well as the food, medical, chemical, energy, and other fields.
Application：
- Machinery manufacturing
- Construction
- Food medical
- Chemical energy
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Diameter | customized |
| Max Length | customized |
| Alloy | 304 |
| Material | Stainless Steel |
| Shape | Bar-Round |
Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 8 |
| Ultimate Tensile Strength (KSI) | 85 |
| Yield Tensile Strength (KSI) | 35 |
| Rockwell Hardness (B Scale) | 92 max |
| Brinell Hardness (3000 kg load) | 195 max |
| Elongation (%) in 2 in. | 55 |
| Melting Point (°F) | 2550 – 2651 |
| Shear Strength (KSI) | 56 |
| Machinability (%) | 40 |
| Electrical Conductivity (% IACS) | 2 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 max |
| Cr | 20 |
| Fe | 66.34 – 74 |
| Ni | 8 – 10.5 |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
