416 Stainless Steel Square Bar
Description

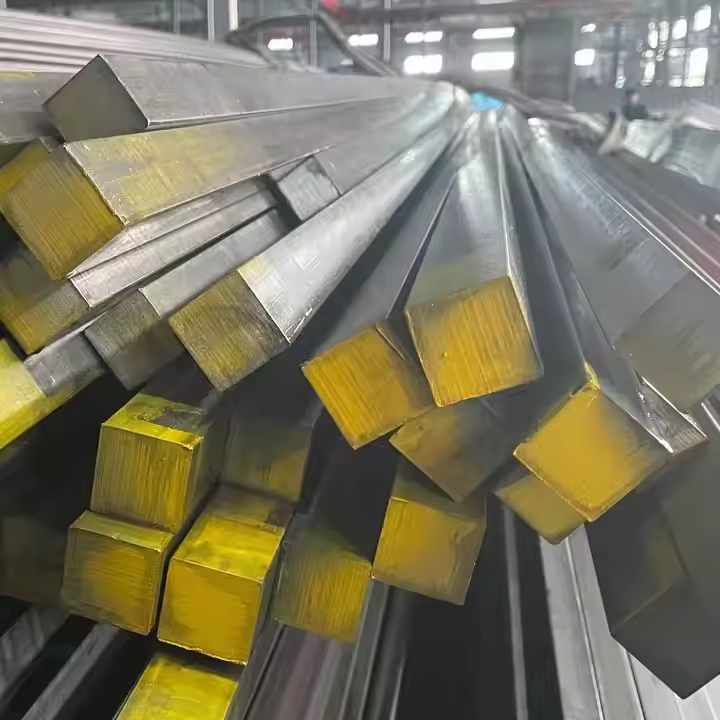

This 416 stainless steel square bar is composed of 416 stainless steel. The heat-treated 416 stainless steel material has excellent machinability and good strength and hardness, and the square structure makes the product have higher strength and uniformity, but the corrosion resistance of 416 stainless steel is relatively ordinary. Therefore, 416 stainless steel square bar is often used in concrete bases, bridge piers, walls, railings and other occasions with low corrosion resistance requirements.
Application：
- Concrete footings
- Piers
- Walls
- Beams
- Columns
- Supports
- Braces
- Railings handles
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Height | 1.25″ |
| Length | 144 max |
| Tolerance | ±1% |
| Alloy | 416 |
| Shape | Bar-Square |
| Standard | ASTM, AiSi, DIN, EN, GB, JIS, GOST |
Mechanical Properties
| Grade | Standard (ASTM/EN/JIS/GB) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) | Modulus of Elasticity (GPa) |
|---|---|---|---|---|---|---|
| 416 | ASTM A582 416 / 1.4005 / SUS416 / Y1Cr13 | 585–760 | 275–450 | 20–30 | 170–240 | 200 |
Chemical Composition
| Grade | Standard (ASTM/EN/JIS/GB) | Chromium (Cr) (%) | Nickel (Ni) (%) | Molybdenum (Mo) (%) | Other Elements (%) |
|---|---|---|---|---|---|
| 416 | ASTM A582 416 / 1.4005 / SUS416 / Y1Cr13 | 12.0–14.0 | ≤1.0 | — | Sulfur (S), Manganese (Mn), Silicon (Si), Phosphorus (P), Carbon (C) |
