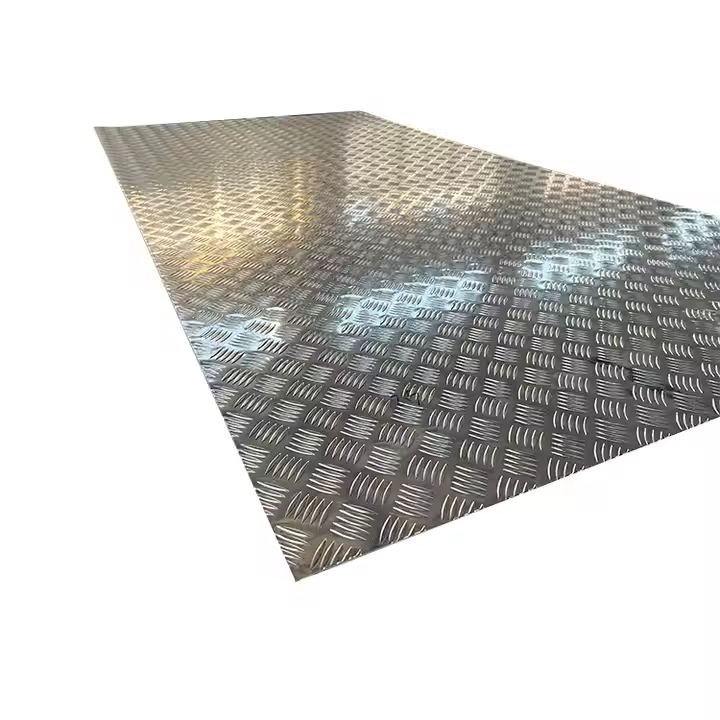

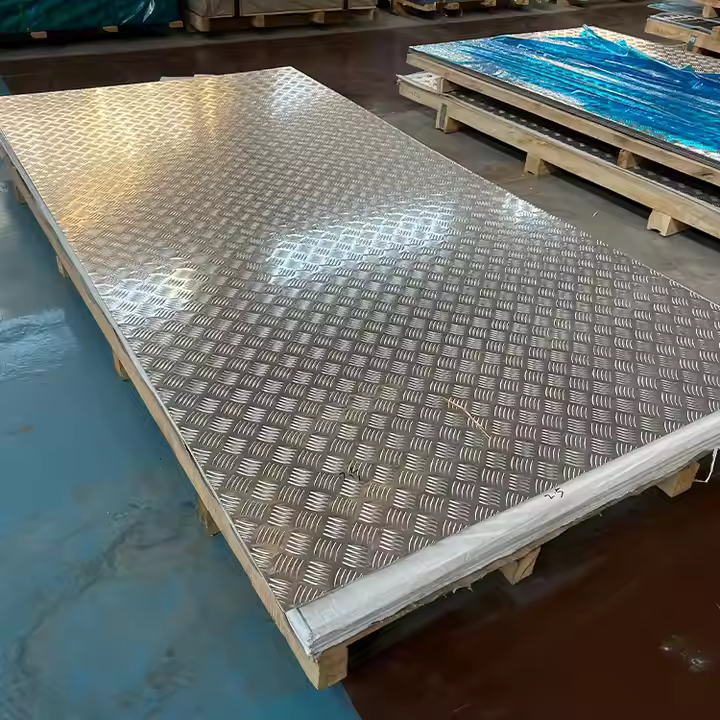

0.0625″ Aluminum Tread Plate 3003-H22
Description
A 0.0625″ 3003-H22 aluminum sheet is characterized by its light weight, high strength, corrosion resistance, and easy processing. The material also meets ASTM-B209 specifications. After a special embossing process, a specific pattern or texture is formed on the surface of the aluminum sheet, enhancing the anti-slip property,y and can be used as stair treads, etc. It is commonly used in construction, automobiles, medical equipment manufacturing, and the electronics industry.
Application：
- Construction
- Vehicle manufacturing
- Medical device manufacturing
- Electronics industry
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Thickness | 0.0625 |
| Pattern | Diamond Pattern |
| Alloy | 3003 |
| Temper | H22 |
| Material | Aluminum |
| Shape | Sheet-Tread Plate |
Mechanical Properties
| Property | Value |
|---|---|
| Brinell Hardness 500 kg load | 37 |
| Density g/cm³ | 3 |
| Ultimate Tensile Strength KSI | 20 |
| Melting Point °F | 1190 – 1210 |
| Yield Tensile Strength KSI | 14 |
| Elongation % in 2 in. | 8 |
| Shear Strength KSI | 12 |
| Machinability % | 30 |
| Electrical Conductivity % IACS | 44 |
Chemical Composition
| Element | Percentage |
|---|---|
| Al | 98.7 |
| Cu | 0.05 – 0.2 |
| Fe | 0.7 max |
| Mn | 1 – 1.5 |
| Si | 0.6 max |
| Zn | 0.1 max |
