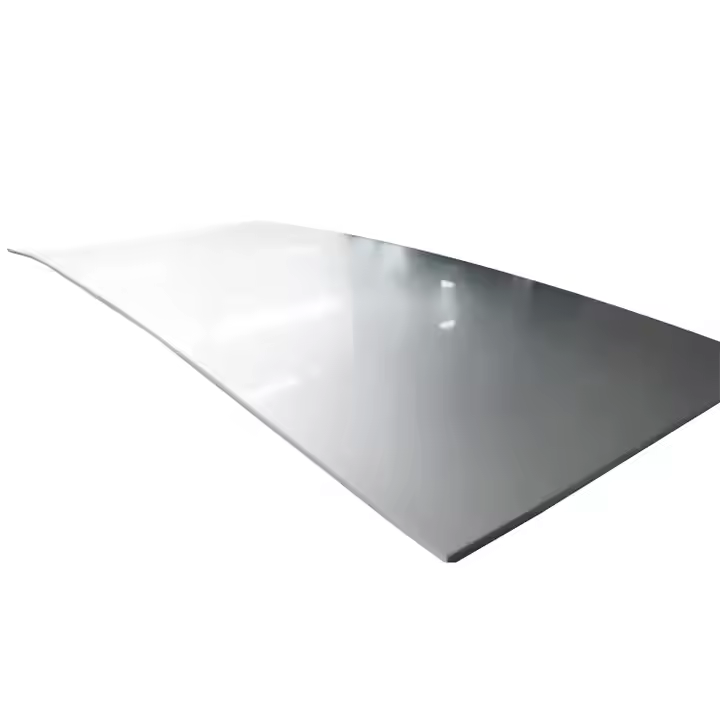

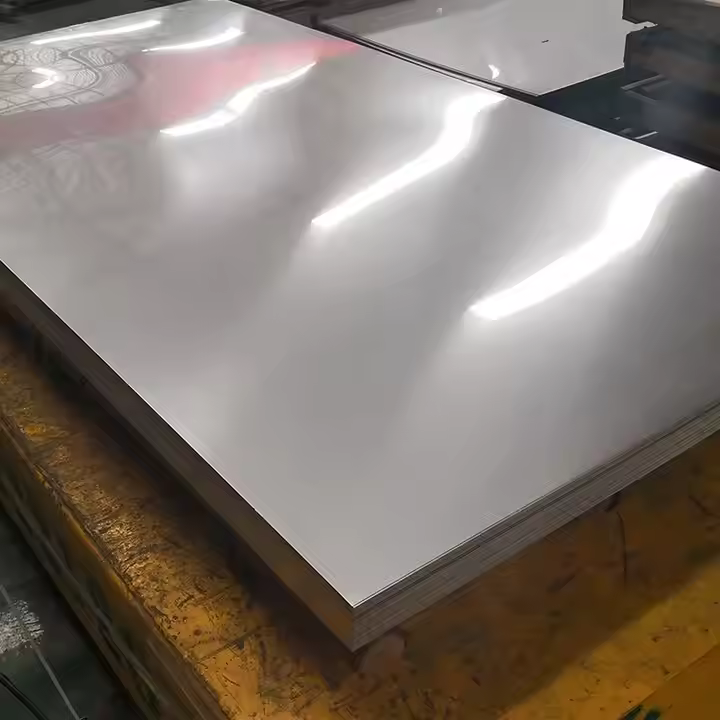

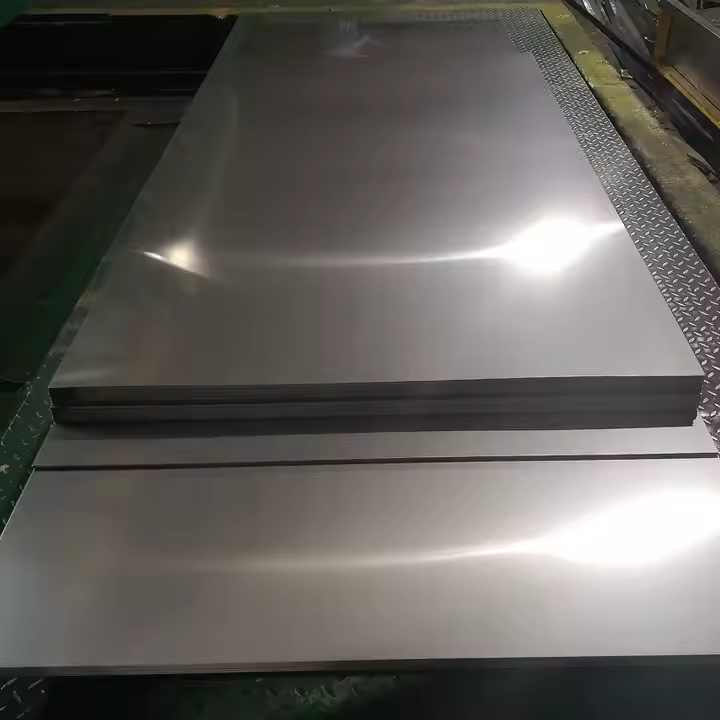

0.16″ Stainless Sheet 316 Cold Roll 2B
Description
This product is a stainless steel coil converted from 0.16-inch thick 316 stainless steel slabs through a rolling mill. After hot rolling, it undergoes cold rolling, annealing, pickling, and several other processes to make its surface reach the 2B standard finish, which is smooth and slightly reflective.
Application：
- Structural components
- Heavy equipment
- Pressure vessels
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Dimension
| Dimension Name | Specification |
|---|---|
| Thickness | 0.16 |
| Max Width | 48 |
| Max Length | 120 |
| Alloy | 316 |
| Covering | Pvc 1 Side |
| Finish | 2B |
| Material | Stainless Steel |
Mechanical Properties
| Property | Value |
|---|---|
| Ultimate Tensile Strength KSI | 82 |
| Density g/cm^3 | 8 |
| Rockwell Hardness B Scale | 95 |
| Brinell Hardness 3000 kg load | 210 |
| Yield Tensile Strength KSI | 37 |
| Shear Strength KSI | 58 |
| Electrical Conductivity % IACS | 2 |
| Elongation % in 2 in. | 52 |
| Melting Point °F | 2500 - 2550 |
| Machinability % | 36 |
Chemistry Information
| Element | Percentage |
|---|---|
| C | 0.08 |
| Cr | 18 max |
| Mn | 2 |
| Fe | 82 |
| Mo | 3 max |
| Ni | 14 max |
| P | 0.045 |
| S | 0.03 |
| Si | 1 |
