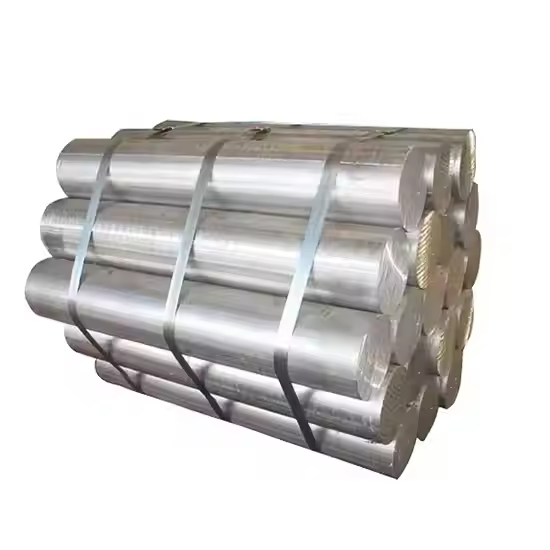

1 Inch Steel Rod
Description
This product is a stainless steel round bar with a diameter of 1 foot, usually made of stainless steel such as 304, 316, 303, etc. The 1-foot diameter gives it high strength and load-bearing capacity, and is commonly used in machinery manufacturing, construction, heavy equipment, shipbuilding and marine engineering and other fields.
Application：
- Machinery Manufacturing
- Construction
- Heavy Equipment
- Marine and Marine Engineering
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Diameter | 1 |
| Length | customized |
| Alloy | 304 |
| Material | Stainless Steel |
| Shape | Bar-Round |
| Standard | ASTM, AiSi, DIN, EN, GB, JIS, GOST |
Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 8 |
| Ultimate Tensile Strength (KSI) | 85 |
| Yield Tensile Strength (KSI) | 35 |
| Rockwell Hardness (B Scale) | 92 max |
| Brinell Hardness (3000 kg load) | 195 max |
| Elongation (%) in 2 in. | 55 |
| Melting Point (°F) | 2550 – 2651 |
| Shear Strength (KSI) | 56 |
| Machinability (%) | 40 |
| Electrical Conductivity (% IACS) | 2 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 max |
| Cr | 20 |
| Fe | 66.34 – 74 |
| Ni | 8 – 10.5 |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
