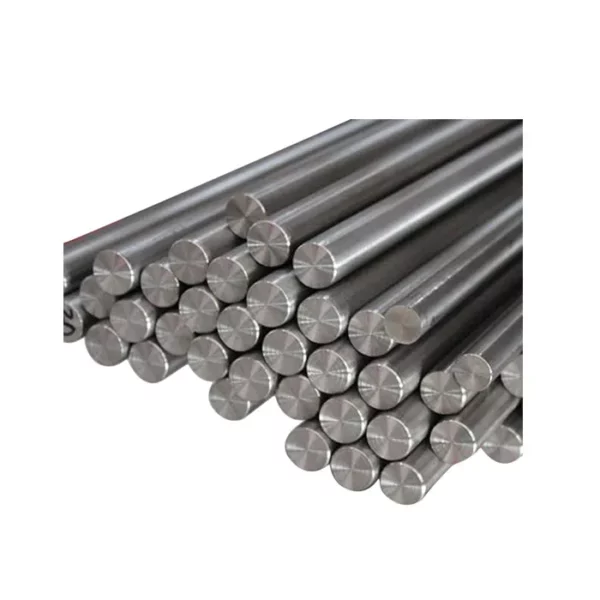

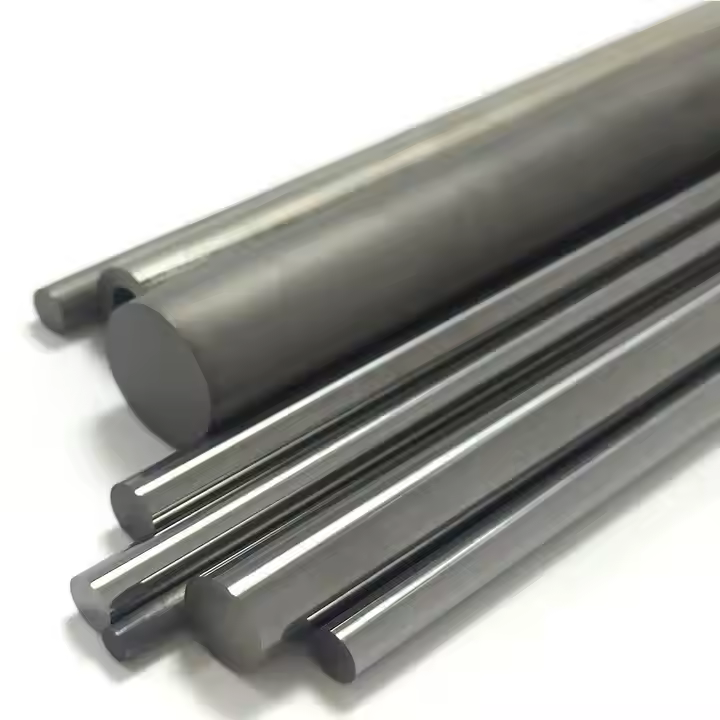

Stainless Steel Round Bar 2mm 6mm 8mm 14mm
Description
Stainless steel round bars with diameters of 2mm, 6mm, 8mm, and 14mm are usually made of stainless steel such as 304, 316, and 303. The small and medium diameters make them light and easy to process, and they are often used in fields with high requirements for precision and quality.
Application：
- Precision machinery parts
- Electronic equipment parts
- Medical equipment
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Diameter | 2mm/6mm/8mm/14mm |
| Length | customized |
| Alloy | 304 |
| Material | Stainless Steel |
| Shape | Bar-Round |
| Standard | ASTM, AiSi, DIN, EN, GB, JIS, GOST |
Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 8 |
| Ultimate Tensile Strength (KSI) | 85 |
| Yield Tensile Strength (KSI) | 35 |
| Rockwell Hardness (B Scale) | 92 max |
| Brinell Hardness (3000 kg load) | 195 max |
| Elongation (%) in 2 in. | 55 |
| Melting Point (°F) | 2550 – 2651 |
| Shear Strength (KSI) | 56 |
| Machinability (%) | 40 |
| Electrical Conductivity (% IACS) | 2 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 max |
| Cr | 20 |
| Fe | 66.34 – 74 |
| Ni | 8 – 10.5 |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
