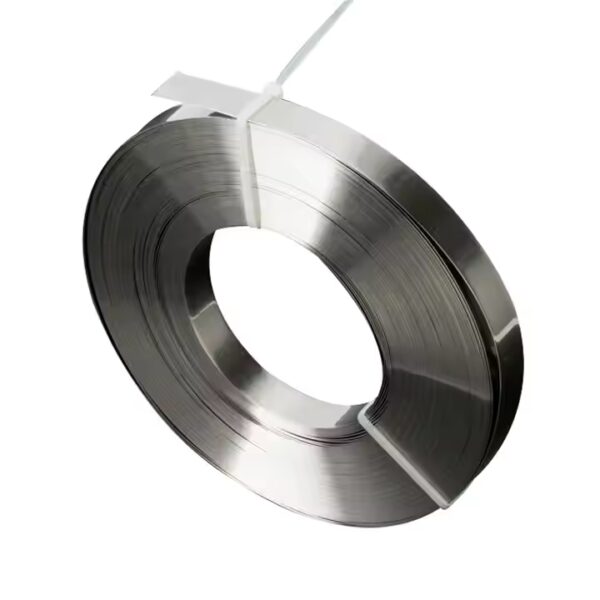

301 Stainless Steel Strip

Description

The 301 stainless steel strip is made using a cold-rolling process from austenitic stainless steel. It contains at least 10.5% chromium, forming a protective oxide layer for basic corrosion resistance. Known for its good formability and high strength, it offers high elasticity, making it ideal for springs and elastic components. Annealing treatment improves its corrosion resistance. The strip supports turning, milling, and drilling.

Application:

  • Aircraft structural parts
  • Trailer bodies
  • Utensils
  • Architectural and automotive trim
  • Roof drainage products
  • Conveyor belts

Need a custom quote

or more information about this product? Contact our sales staff today!

Product Specification

Mechanical Properties

Property Imperial Units Metric Units
Yield Strength 45 ksi 310 MPa
Ultimate Tensile Strength 120 ksi 827 MPa
Elongation to Break 60% 60%
Rockwell Hardness B86 B86

Chemistry Composition

Element Percentage
Carbon (C) ≤ 0.15 max
Silicon (Si) ≤ 1.00 max
Manganese (Mn) ≤ 2.00 max
Phosphorus (P) ≤ 0.045 max
Sulfur (S) ≤ 0.030 max
Copper (Cu) ≤ 0.25 max
Iron (Fe) Balance
Nickel (Ni) 6.00 – 8.00 max
Chromium (Cr) 16.00 – 18.00 max
Nitrogen (N) ≤ 0.10 max

Related Products

High strength and excellent formability.
Applications: Machine parts, bolts, construction, and more.

201 stainless steel has similar properties and ductility to 301 but offers higher yield strength. It is widely used in architectural applications, automotive trim, springs, and fasteners.

Density: 0.283 lbs/in³ | 7.81 g/cm³
Electrical Resistivity: 27.0 microhm-in | 68.5 microhm-cm
Specific Heat (32–212 °F / 0–100 °C): 0.12 BTU/lbs/°F | 0.50 kJ/kg/K

Cold rolled and polished for a smooth finish with good corrosion resistance.
Applications: Automotive, construction, electronics
Finishes: 2B, No.4 Brushed, No.8 Mirror, Hairline, Polished
