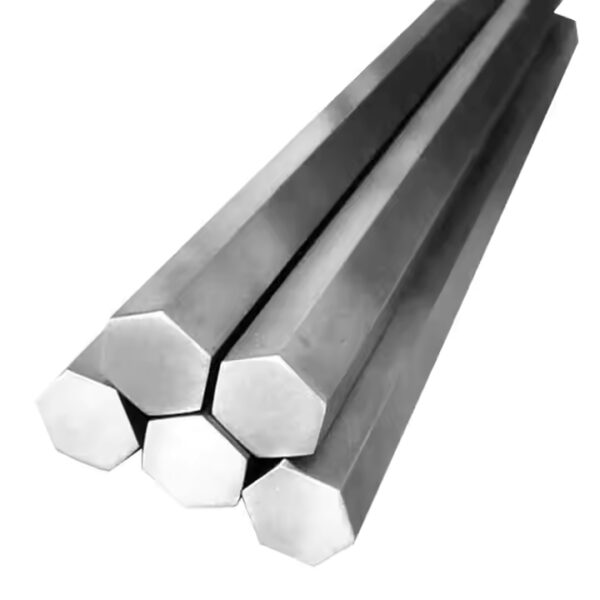

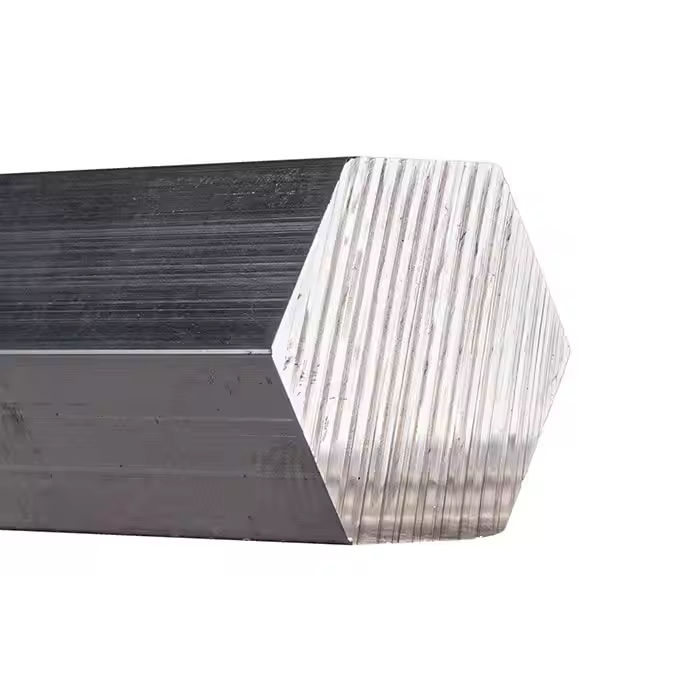

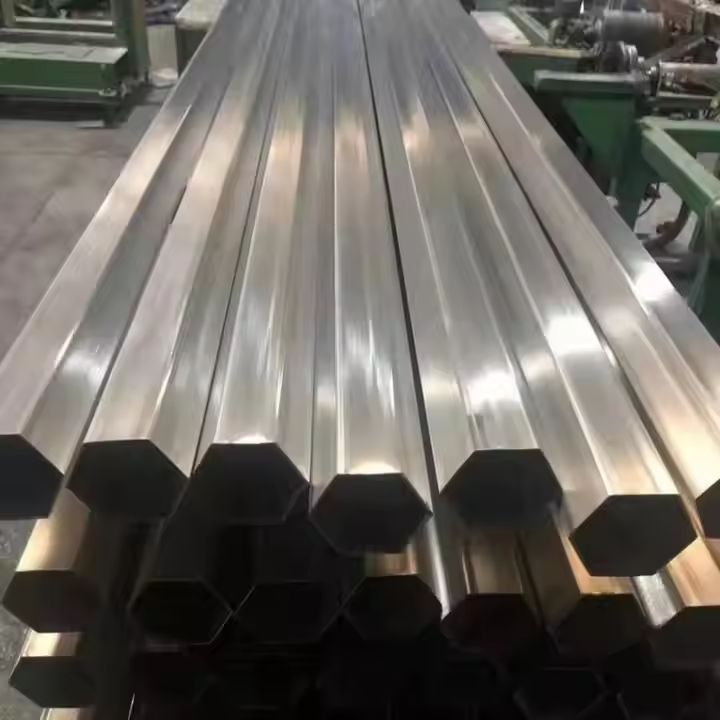

316 Stainless Steel Hex Bar
Description
The hexagonal bar is made of 316 stainless steel, an austenitic stainless steel containing molybdenum, which enhances the corrosion resistance of the material and maintains its performance at low or high temperatures, making it widely applicable. The hexagonal structure of the hexagonal bar provides enhanced grip, better torque transmission and anti-rolling functions, suitable for applications requiring durability in harsh environments such as construction, chemical plants, marine environments, and food-processing facilities.
Application：
- Food preparation equipment particularly in chloride environments
- Chemical containers
- Heat Exchangers
- Woven or welded screens for mining, quarrying & water filtration
- Threaded fasteners
- Springs
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Max Length | customized |
| Across Flats | customized |
| Alloy | 316 |
| Temper | Annealed |
| Production Method | Cold Finished |
| Material | Stainless Steel |
| Shape | Bar-Hex |
Mechanical Properties
| Property | Value |
|---|---|
| Ultimate Tensile Strength (KSI) | 82 |
| Density (g/cm³) | 8 |
| Rockwell Hardness (B Scale) | 95 |
| Brinell Hardness (3000 kg load) | 210 |
| Yield Tensile Strength (KSI) | 37 |
| Shear Strength (KSI) | 58 |
| Electrical Conductivity (% IACS) | 2 |
| Elongation (%) in 2 in. | 52 |
| Melting Point (°F) | 2500 – 2550 |
| Machinability (%) | 36 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 |
| Cr | 18 max |
| Mn | 2 |
| Fe | 82 |
| Mo | 3 max |
| Ni | 14 max |
| P | 0.045 |
| S | 0.03 |
| Si | 1 |
