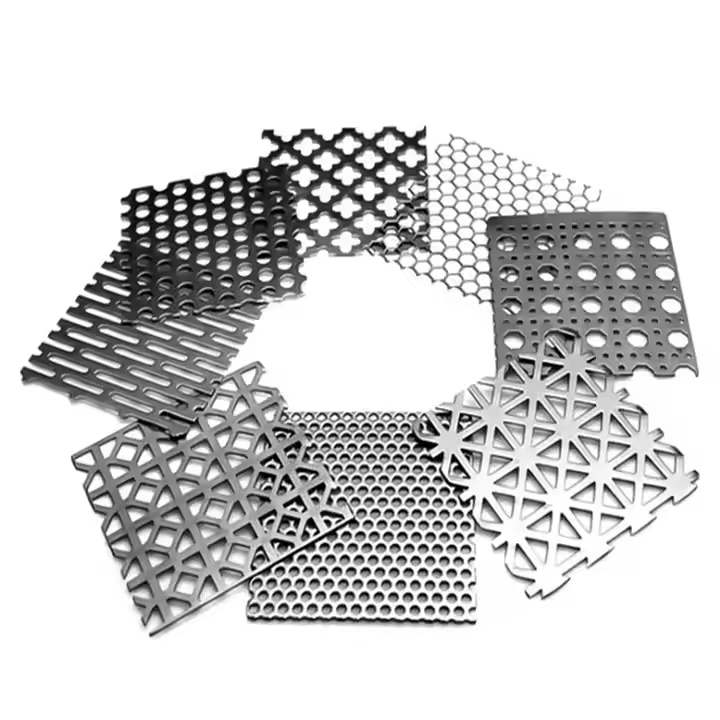

3mm Perforated Stainless Steel Sheet
Description
These 3mm thick perforated plates are usually made of stainless steel plates through punching. Their greater thickness can provide better structural support and durability, and are suitable for occasions that require higher strength and durability.
Application：
- Building structures
- Bridges
- Ships
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Thickness | 3mm |
| Hole Size | According to Your Requirement |
| Hole Shape | According to Your Requirement |
| Alloy | 304 |
| Material | Stainless Steel |
| Shape | Sheet-Perforated |
| Weave Characteristic | Stamping |
| Surface Finished | Hot Dipped Galvanized Steel, Electro Galvanized Steel |
| Technique | Cold Rolled |
Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 8 |
| Ultimate Tensile Strength (KSI) | 85 |
| Yield Tensile Strength (KSI) | 35 |
| Rockwell Hardness (B Scale) | 92 max |
| Brinell Hardness (3000 kg load) | 195 max |
| Elongation (%) in 2 in. | 55 |
| Melting Point (°F) | 2550 – 2651 |
| Shear Strength (KSI) | 56 |
| Machinability (%) | 40 |
| Electrical Conductivity (% IACS) | 2 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 max |
| Cr | 20 |
| Fe | 66.34 – 74 |
| Ni | 8 – 10.5 |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
