Stainless Steel 304 Perforated Sheet
Description

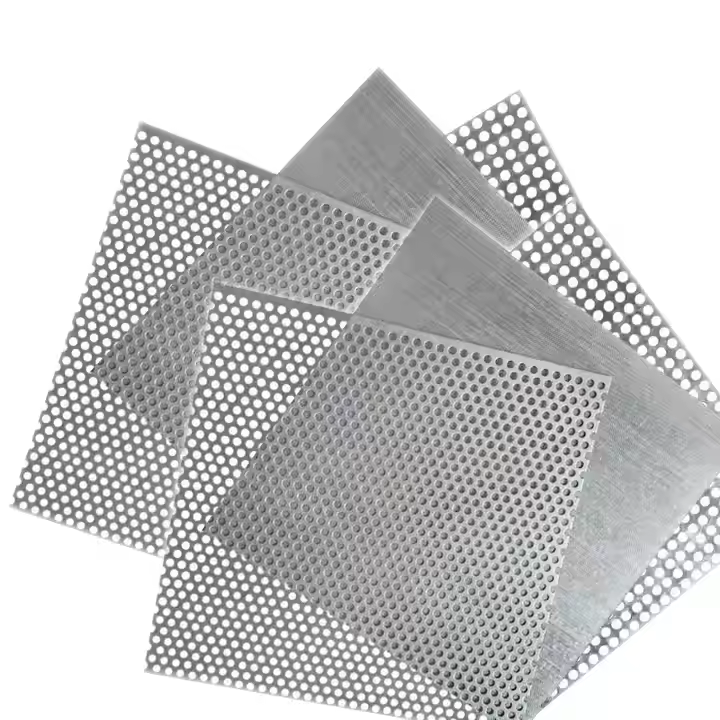

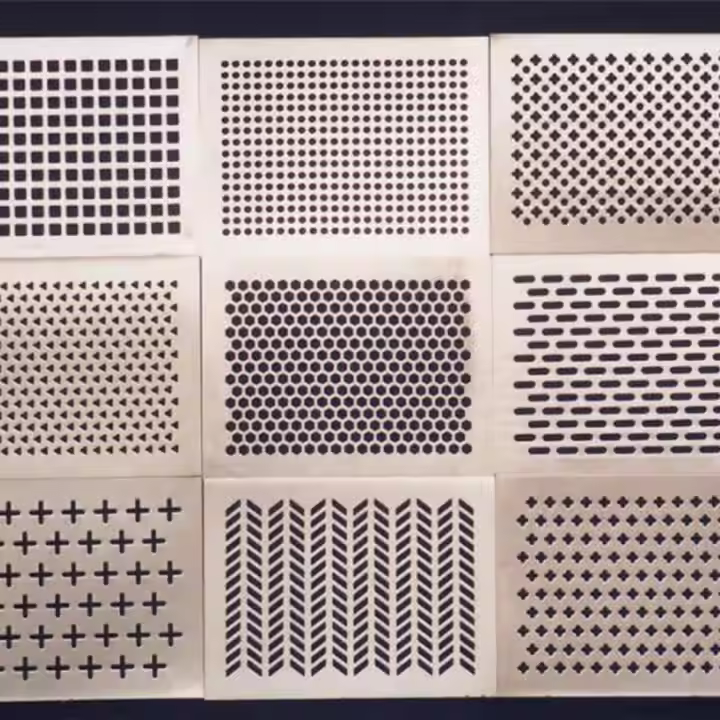

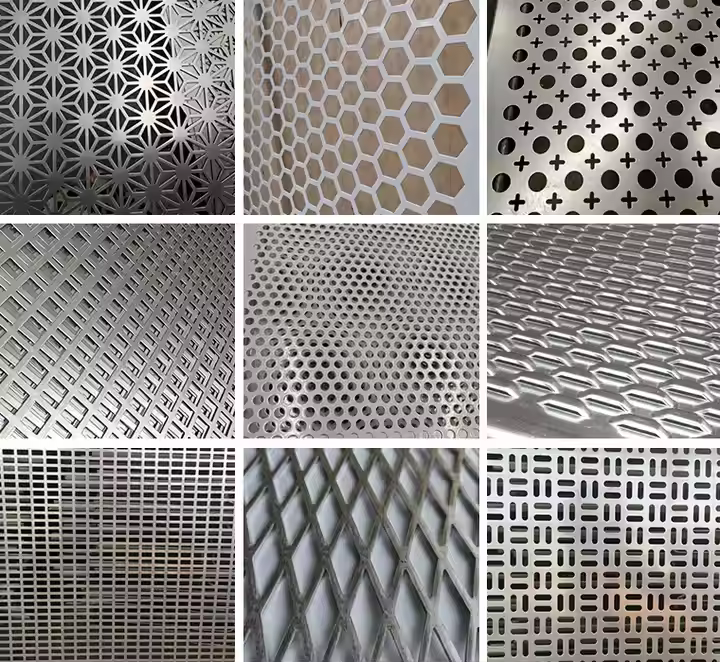

Crafted from high-grade 304 stainless steel, this perforated sheet features precision-punched holes in various shapes and patterns. Known for its exceptional corrosion resistance, formability, and durability, 304 stainless steel withstands exposure to acids, alkalis, and salts, making it ideal for demanding environments. It is widely used in industrial, decorative, food & beverage, and medical applications—where both functionality and aesthetic appeal matter.
Application：
- Industry
- Decoration
- Food and beverage
- Medical industry
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Alloy | 304 |
| Hole Shape | customized |
| Hole Size | customized |
| Length | customized |
| Specification | customized |
| Material | Stainless Steel |
| Shape | Sheet-Perforated |
Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 8 |
| Ultimate Tensile Strength (KSI) | 85 |
| Yield Tensile Strength (KSI) | 35 |
| Rockwell Hardness (B Scale) | 92 max |
| Brinell Hardness (3000 kg load) | 195 max |
| Elongation (%) in 2 in. | 55 |
| Melting Point (°F) | 2550 – 2651 |
| Shear Strength (KSI) | 56 |
| Machinability (%) | 40 |
| Electrical Conductivity (% IACS) | 2 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 max |
| Cr | 20 |
| Fe | 66.34 – 74 |
| Ni | 8 – 10.5 |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
Related Products
Thickness: 0.118 ”
Opening Size: 0.25 ”
Staggered Centers: 0.375 ”
Open Area: 40%
Hole Shape: round
Thickness: 0.0394”
Opening Size: 0.125”
Staggered Center: 0.0275”
Open Area: 30%
Hole Shape: Round
Max Width: 36”
