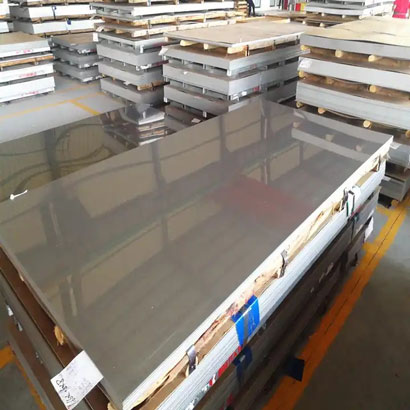

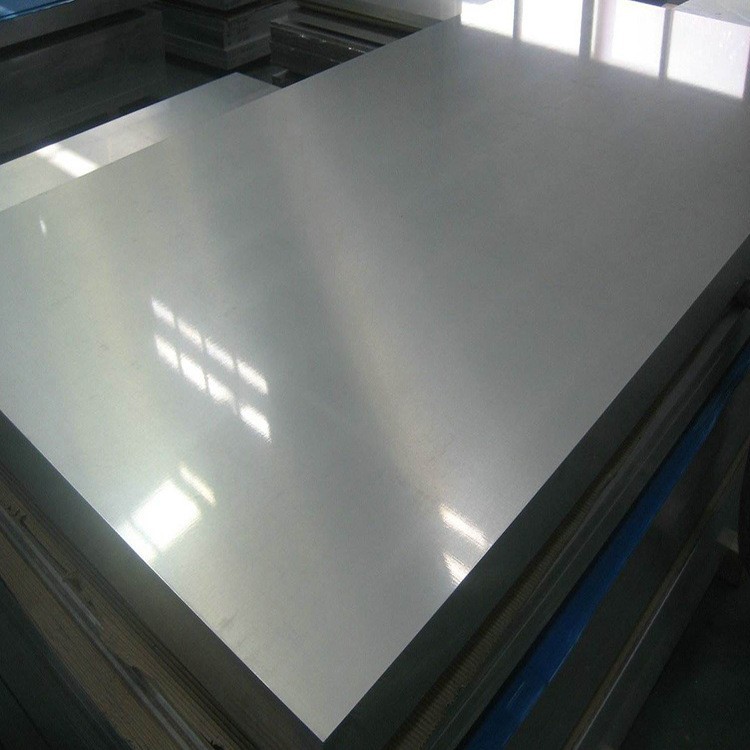

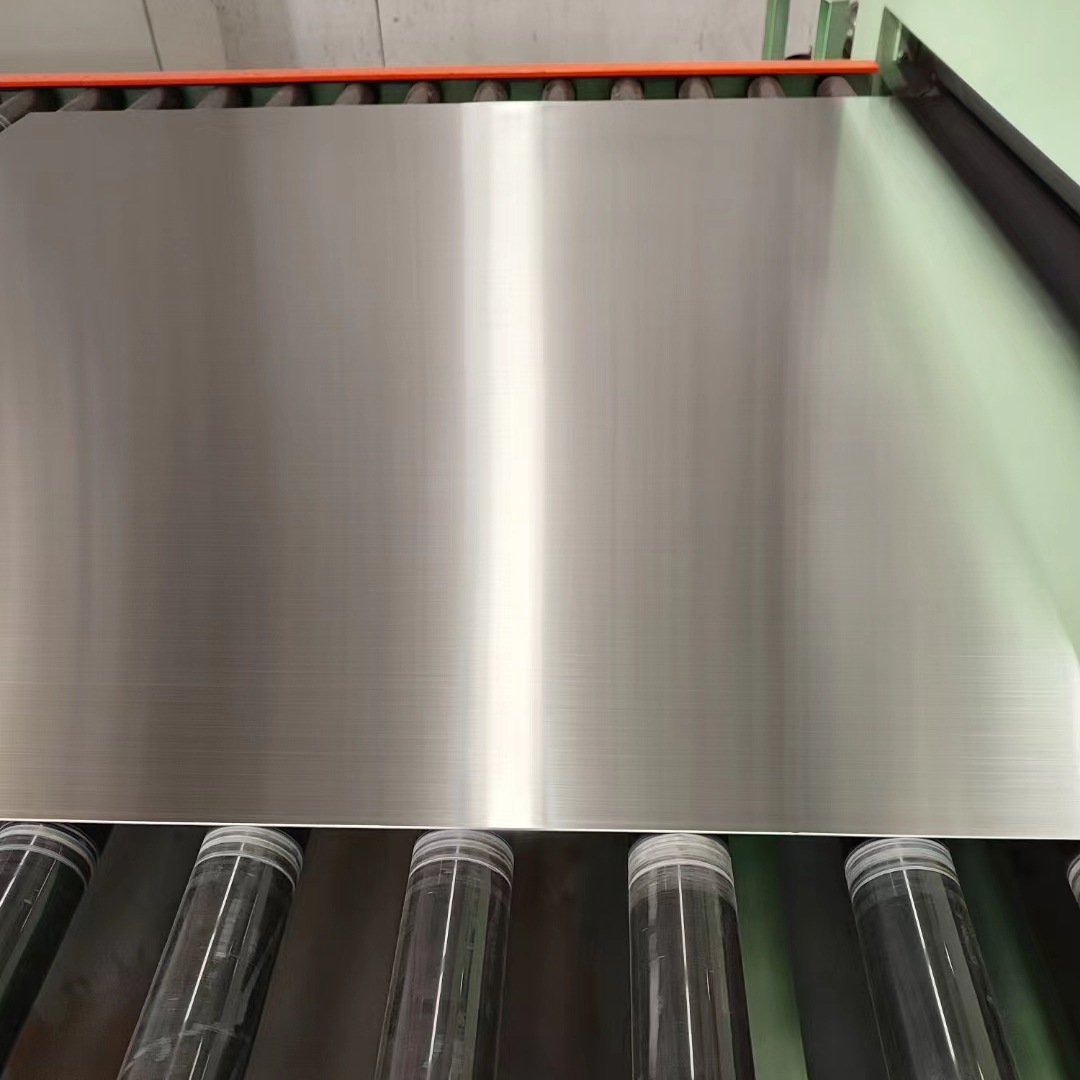

Decorative Stainless Steel Panels
Description
This product can be made of 304 and 316 stainless steel through mirror, PVD color, etching, embossing, polishing pattern, sandblasting, vibration, lamination, and other processes to achieve decorative effects. It was excellent corrosion resistance and durability, while not losing artistic beauty.
Application：
- Building curtain wall
- Elevator decoration
- Shopping mall partition
- Home background wall
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Width | 500mm-1250mm |
| Length | Coils or acc to your request |
| Thickness | 0.4mm-1.5mm |
| Finished | NO.4, Hairline, Mirror, PVD Color, Etched, Embossed, Polished Pattern, Sandblasted, Vibration, Lamination etc. |
| Tolerance | ±1% |
| Alloy | 304, 316, 201 |
| Standard | ASTM, EN, GB, JIS |
Mechanical Properties
| Grade | Standard (ASTM/EN/JIS/GB) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) | Modulus of Elasticity (GPa) |
|---|---|---|---|---|---|---|
| 316 | ASTM A240 316 / 1.4401 / SUS316 / 06Cr17Ni12Mo2 | 515–720 | 205–275 | 45–60 | 180–220 | 193 |
| 304 | ASTM A240 304 / 1.4301 / SUS304 / 06Cr19Ni10 | 515–620 | 205–310 | 40–60 | 180–200 | 193 |
| 201 | ASTM A240 201 / 1.4372 / SUS201 / 12Cr17Mn6Ni5N | 520–690 | 275–345 | 45–55 | 200–230 | 193 |
Chemical Composition
| Grade | Standard (ASTM/EN/JIS/GB) | Chromium (Cr) (%) | Nickel (Ni) (%) | Molybdenum (Mo) (%) | Other Elements (%) |
|---|---|---|---|---|---|
| 316 | ASTM A240 316 / 1.4401 / SUS316 / 06Cr17Ni12Mo2 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S) |
| 304 | ASTM A240 304 / 1.4301 / SUS304 / 06Cr19Ni10 | 18.0–20.0 | 8.0–10.5 | — | Manganese (Mn), Silicon (Si), Carbon (C), Phosphorus (P), Sulfur (S), Nitrogen (N) |
| 201 | ASTM A240 201 / 1.4372 / SUS201 / 12Cr17Mn6Ni5N | 16.0–18.0 | 3.5–5.5 | — | Manganese (Mn), Silicon (Si), Carbon (C), Nitrogen (N), Phosphorus (P), Sulfur (S) |
