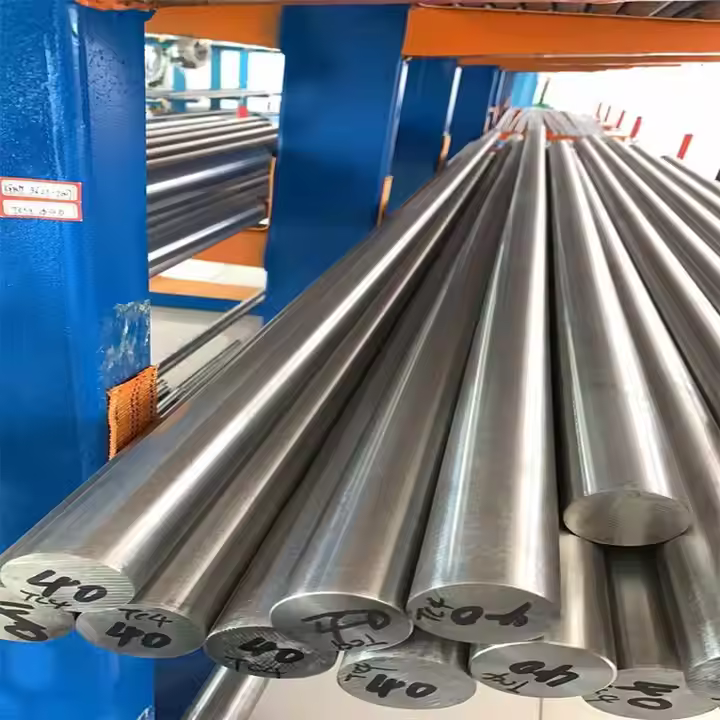

Hastelloy C276
Description
Hastelloy C276 (UNS N10276) is a nickel-molybdenum-chromium alloy with added tungsten, designed for exceptional corrosion resistance in a wide range of aggressive environments. Its very low carbon and silicon levels reduce carbide precipitation during welding, maintaining corrosion resistance in the as-welded state. C276 performs well in both oxidizing and reducing environments, including chloride and halide-containing media. It is widely used in pollution control, chemical processing, and waste treatment systems
Application：
- Chemical processing
- Pollution control
- Pulp and paper production
- Industrial and municipal waste treatment
- Sour natural gas recovery
- Pharmaceutical and food processing equipment
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.89 g/cm³ | 0.321 lb/in³ |
| Melting point | 1371° C | 2500° F |
| Tensile strength (@thickness 4.80-25.4 mm, 538° C/ @thickness 601.2 MPa) | 601.2 MPa | 87200 psi |
| Yield strength (0.2% offset, @thickness 2.40 mm, 427° C) | 204.8 MPa | 29700 psi |
| Elastic modulus (RT) | 205 GPa | 29700 ksi |
| Elongation at break (in 50.8 mm, @thickness 1.60-4.70 mm) | 56% | 56% |
| Hardness, Rockwell B (plate) | 87 | 87 |
| Thermal expansion co-efficient (@24-93° C/75.2-199° F) | 11.2 μm/m° C | 6.22 μin/in° F |
| Thermal conductivity (-168° C) | 7.20 W/mK | 50.0 BTU in/hr.ft².° F |
Chemical Composition
| Item | C | Mn | Fe | P | S | Si | Ni | Co | Ti+Cu | Al+Ti | Cr | Mo | B | W | V |
| Hastelloy C276 | ≤0.01 | ≤1 | 4-7 | ≤0.04 | ≤0.03 | ≤0.08 | rest | ≤2.5 | – | – | 14.5-16.5 | 15-17 | – | 3-4.5 | ≤0.35 |
Related Products
Resistance (μΩ.m): 6.84*10^-8Ω m
Ultimate Strength (≥ MPa): 620
Elongation (≥ %): 35%-55%
