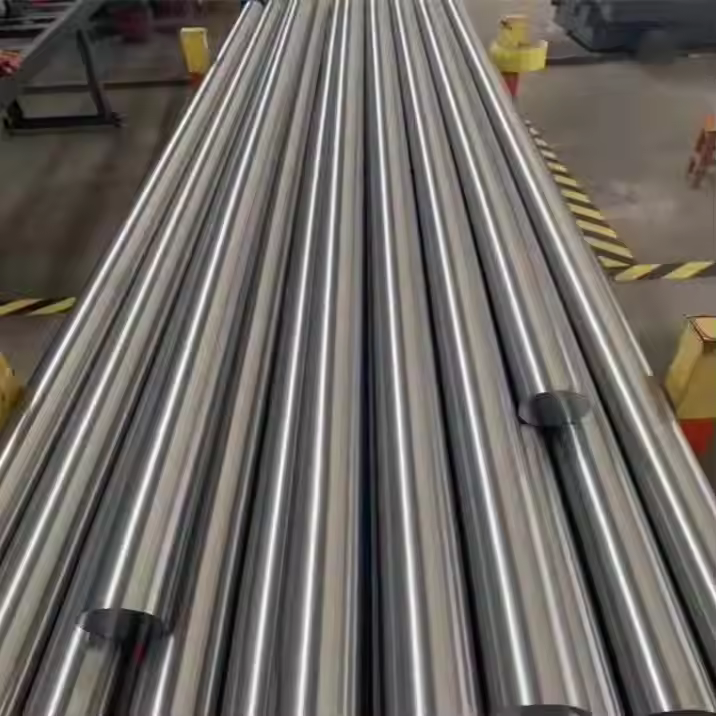

AMS 5536 Hastelloy X
Description
AMS 5536 Hastelloy X is a solid-solution-strengthened nickel-based alloy known for excellent high-temperature strength and corrosion resistance. Molybdenum increases its structural stability, making it suitable for high-heat, high-stress applications. Non-magnetic and easy to machine, it is used in combustion chambers, heat exchangers, and furnace parts. It retains strength up to 816°C (1500°F) and resists oxidation up to 1204°C (2200°F).
Application：
- Jet engine components
- Chemical processing equipment
- Petrochemical applications
- Industrial furnace components
- Gas turbine components
- Aerospace components
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Mechanical Properties
| Property | Value | Units |
|---|---|---|
| Tensile Strength (Minimum) | 105 | ksi (724 MPa) |
| Yield Strength (0.2% Offset, Minimum) | 60 | ksi (414 MPa) |
| Elongation | 40 | % |
| Modulus of Elasticity (at Room Temperature) | 29.8 x 10^3 | ksi (205 GPa) |
| Hardness | 89 | HRB (Rockwell B) |
Chemical Composition
| Item | C | Mn | Si | Cr | Ni | Mo | Fe | Ti | Al | Co | B | Cu | W |
| AMS 5536 Hastelloy X | 0.05 – 0.15 | ≤1.0 | ≤1.0 | 20.5 – 23.0 | Bal | 8.0 – 10.0 | 17.0 – 20.0 | ≤0.15 | ≤0.50 | 0.5 – 2.5 | ≤0.01 | ≤0.50 | 0.2 – 1.0 |
