Stainless steel pipe and tube tolerances determine whether material will fit, weld and perform as intended. For a buyer, the main risk is not simply receiving the wrong nominal size. It is accepting an RFQ or purchase order that does not state which dimensions, standards, editions and inspection rules control acceptance.
This guide explains how pipe and tube are sized, which tolerance items affect procurement, how ASTM A312 and ASTM A269 differ, and what to send a supplier for a practical quotation. Exact permissible deviations must always be taken from the standard edition and any project specification named in the purchase order.
Why Stainless Steel Pipe and Tube Tolerances Matter in Purchasing
Tolerance is the permitted variation from a nominal dimension or condition. A shipment can match the requested grade and still cause assembly problems if outside diameter, wall thickness, ovality, straightness, cut length or end preparation falls outside the limits needed by the project.
The commercial effect can be significant: fittings may not seat correctly, automated weld fixtures may need adjustment, minimum wall calculations may no longer be valid, and extra cutting or straightening may be required on site. Buyers should therefore define the functional dimensions and acceptance method before comparing quotations.
Pipe vs Tube: Choose the Correct Dimensional System
Pipe and tube can be made from similar stainless steel grades, but they are purchased under different dimensional conventions. Pipe is commonly ordered by nominal pipe size (NPS) and schedule. Tube is commonly ordered by actual outside diameter (OD) and wall thickness. Neither term automatically indicates better quality; suitability depends on the service, governing standard and specified acceptance limits.
| Buyer check | Pipe | Tube |
|---|---|---|
| Size system | NPS plus schedule. For a given NPS, outside diameter is fixed by the dimensional system; schedule changes wall thickness and inside diameter. | Usually specified by actual outside diameter and wall thickness, with stated tolerances. |
| Tolerance focus | Pressure service, wall thickness, end preparation, system fit and applicable pipe standard. | Outside diameter, wall thickness, ovality, straightness, surface condition and component fit. |
| Common uses | Process piping, water, energy, chemical and general industrial lines. | Heat exchangers, instruments, fabricated assemblies, sanitary service and precision components. |
| RFQ essentials | Grade, ASTM/ASME standard and edition, NPS, schedule, welded or seamless route, length and end condition. | Grade, standard and edition, OD, wall, tolerance class, length, finish, heat treatment and inspection. |
For available formats and product routes, review Jianglin Steel’s stainless steel pipe product range.
Key Stainless Steel Pipe and Tube Tolerances to Control
Outside Diameter
OD controls fit with couplings, ferrules, clamps, bending dies, tube sheets and other mating components. Define whether the requirement applies to average OD, any measured diameter, or both. Measurements may need to be taken at more than one orientation and location, especially near tube ends.
Wall Thickness
Wall thickness affects pressure design, weight, forming response and weld preparation. Do not assume that nominal wall equals the minimum permitted wall. State whether the order is controlled by a nominal wall with the standard’s permitted variation, a project minimum wall, or a tighter bilateral tolerance.
Ovality
Ovality describes the difference between maximum and minimum OD at the same cross-section. It matters when material must pass through a close fitting, enter a tube sheet, rotate in a fixture or maintain a consistent weld gap. If ovality is critical, define how it is calculated and where it is measured.
Cut Length
Specify random length, mill length or exact cut length. Exact lengths may require a separate tolerance and an allowance for facing, deburring or subsequent fabrication. For container loading or automated assembly, also confirm bundling and maximum piece length.
Straightness
Straightness affects alignment, orbital welding, tube-in-tube assembly and feeding through production equipment. A useful requirement identifies the gauge length or full-length basis and the maximum permitted deviation rather than using only the word “straight.”
End Condition and Surface Finish
End requirements may include square cut, bevel geometry, burr removal, end protection or weld preparation. Surface requirements can include pickling and passivation, mechanical polishing, internal roughness limits or protection against handling damage. Include these items in the first RFQ.
ASTM A312 vs ASTM A269: What the Buyer Should Specify
ASTM’s A01.10 subcommittee lists A312/A312M for seamless, welded and heavily cold-worked austenitic stainless steel pipe, and A269/A269M for seamless and welded austenitic stainless steel tubing for general service. Check the official ASTM A01.10 standards list and cite the required edition in the purchase order.
ASTM A312 is normally the starting point when the item is pressure pipe purchased by NPS and schedule. ASTM A269 is normally the starting point for general-service tubing purchased by OD and nominal wall. The standard name alone is not a complete RFQ: the buyer must still state grade, construction, dimensions, length, finish, heat-treatment condition, test or certificate requirements and any tighter project tolerances.
For a procurement-focused explanation, see the ASTM A269 stainless steel tube guide. Projects involving sanitary process tubing should separately review ASTM A270 sanitary tubing requirements.

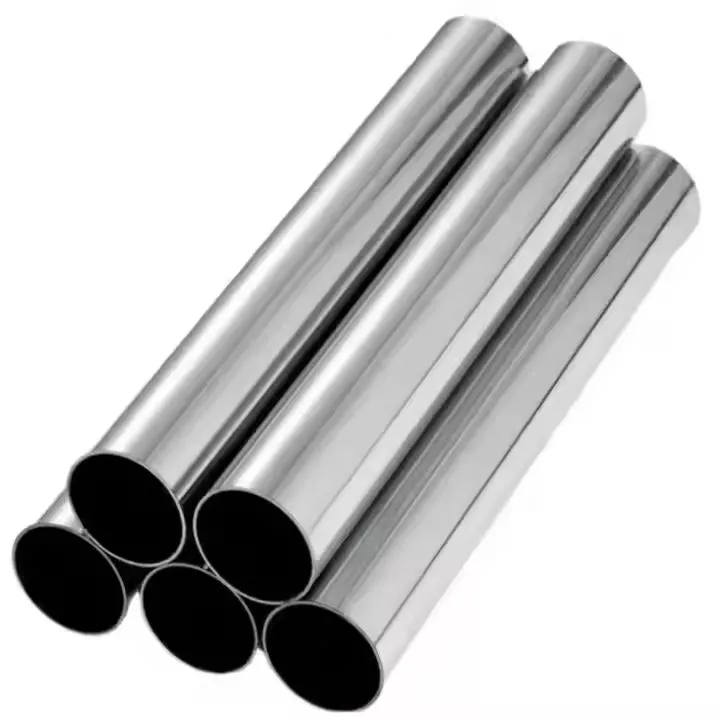

Manufacturing Route and Finish Affect Dimensional Variation
Seamless, welded, cold-finished and heavily cold-worked products do not have identical production histories. Welding, heat treatment, sizing, drawing, straightening, pickling and polishing can each change the final dimensional distribution. A tighter requirement may be feasible, but it can require additional passes, sorting or inspection.
Select the route from service needs rather than from a general assumption that one is always superior. Jianglin Steel provides separate information for stainless steel welded pipe and stainless seamless steel pipe; compare the applicable standard, size range, finish and testing before nomination.
Common austenitic grades include 304/304L and 316/316L, but material selection must consider corrosion environment, temperature, fabrication and cleaning conditions. Surface choices may include mill finish, pickled and passivated, or polished conditions. Use a measurable finish requirement where surface condition is functional.
How to Write Tolerance Requirements in an RFQ
A quote can only reflect what the supplier can identify. Send the following information in one controlled specification or drawing:
- Product form: pipe or tube; round, square, rectangular or capillary where applicable.
- Material: grade or UNS designation, including low-carbon or dual-certification requirement.
- Standard: ASTM, ASME, EN or project specification, including edition or revision.
- Construction: seamless, welded, cold-finished or another permitted route.
- Dimensions: NPS and schedule for pipe, or OD and wall thickness for tube.
- Tolerance: standard tolerance or an explicit project limit for every critical dimension.
- Length and ends: random or cut length, length tolerance, bevel, squareness and burr condition.
- Surface: mill, pickled/passivated or polished finish; include roughness and measurement basis if required.
- Quantity: piece count or total weight, plus packaging and marking requirements.
- Inspection: sampling, gauges, reports, certificate type and third-party witness needs.
- Application: service fluid, temperature, pressure and downstream forming or welding.
Inspection, Records, and Acceptance
Dimensional inspection is distinct from nondestructive testing (NDT). OD, wall, length, ovality and straightness can be checked with calibrated micrometers, calipers, gauges, tapes or suitable dimensional systems. Ultrasonic thickness measurement is an NDT method, while eddy-current, hydrostatic and other tests may be required by the applicable product standard or project specification.
The order should define who inspects, what instruments or methods are acceptable, how many pieces and locations are checked, how results are recorded, and what happens if a sample fails. Material test reports confirm specified material and test data, but they do not replace a dimensional inspection report when the project requires one.
For critical assemblies, provide the mating-part drawing or a control plan. Supplier review before production is less expensive than sorting finished stock against an unstated fit requirement.
Why Source Stainless Steel Pipe and Tube from Jianglin Steel
Jianglin Steel’s pipe range includes welded and seamless products as well as fittings, capillary tube and rectangular tube. This range allows a buyer to discuss product form, manufacturing route, grade, finish and project documentation within one quotation process.
A useful supplier review should confirm that the selected standard and dimensional system match the application, identify tighter tolerances before pricing, and flag requirements that need additional processing or inspection. Final feasibility, MOQ and lead time should be confirmed against the complete RFQ.
FAQ About Stainless Steel Pipe and Tube Tolerances
Are pipe and tube with the same nominal size interchangeable?
No. Pipe is commonly designated by NPS and schedule, while tube is commonly designated by actual OD and wall thickness. Compare the actual dimensions, tolerances, standard and end connection before approving a substitution.
What tolerance applies if the PO only cites ASTM A312 or ASTM A269?
The cited standard and edition provide baseline requirements. Add numerical project limits for any critical OD, minimum wall, straightness, finish or cut length.
Can Jianglin supply a custom size or tighter tolerance?
Potentially, depending on grade, size, manufacturing route, quantity and inspection level. Send the required nominal value, permitted deviation, measurement method and quantity.
What documents should a buyer send with the inquiry?
Send the grade, standard and edition, dimensions, construction, length, finish, quantity, end condition, tolerance table, inspection needs and application. Include a drawing where fit or fabrication is critical.
What are the MOQ and lead time for stainless steel pipe or tube?
MOQ and lead time vary with stock, grade, size, route, finish, testing and customization. Confirm both during quotation using the complete specification and delivery destination.
