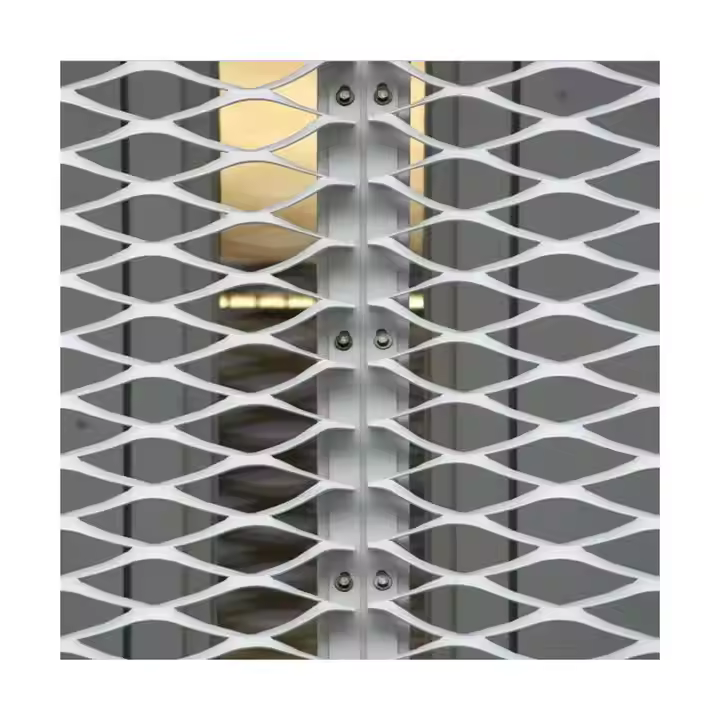

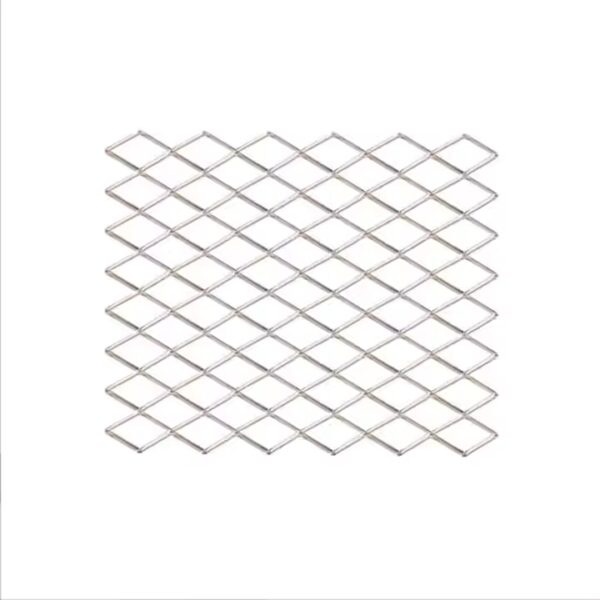

Stainless Expanded 304-Flattened
Description

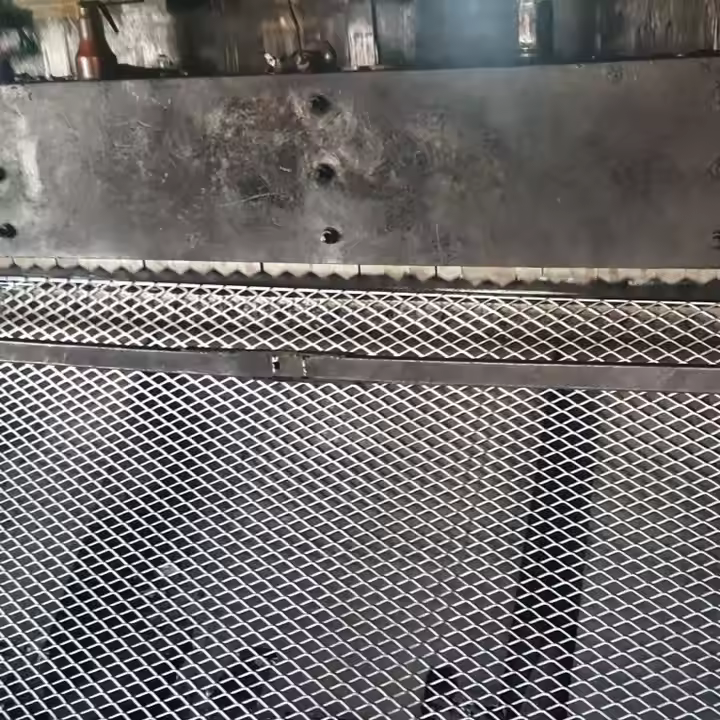

This sheet is made of 304 stainless steel plate by cutting first, then stretching to form a diamond opening, and finally flattening, with uniform thickness and smooth surface. It can freely pass light, liquid, sound and air, suitable for decoration and high-precision applications, and is often used in architectural decoration, food processing, chemical equipment, filters, etc.
Application：
- Construction Wire Mesh
- Protecting Mesh
- Decorative Mesh
- Filter
- Barbecue Wire Mesh
- Cages
Need a custom quote
or more information about this product? Contact our sales staff today!
Product Specification
Specification
| Dimension Name | Value |
|---|---|
| Max Width | 48 |
| Max Length | 120 |
| Style | According to Your Requirement |
| Opening Size | According to Your Requirement |
| Open Area | According to Your Requirement |
| Diamond Size | According to Your Requirement |
| Alloy | 304 |
| Shape Type | Flattened |
| Material | Stainless Steel |
| Shape | Sheet-Expanded |
Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 8 |
| Ultimate Tensile Strength (KSI) | 85 |
| Yield Tensile Strength (KSI) | 35 |
| Rockwell Hardness (B Scale) | 92 max |
| Brinell Hardness (3000 kg load) | 195 max |
| Elongation (%) in 2 in. | 55 |
| Melting Point (°F) | 2550 – 2651 |
| Shear Strength (KSI) | 56 |
| Machinability (%) | 40 |
| Electrical Conductivity (% IACS) | 2 |
Chemical Composition
| Element | Percentage |
|---|---|
| C | 0.08 max |
| Cr | 20 |
| Fe | 66.34 – 74 |
| Ni | 8 – 10.5 |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
