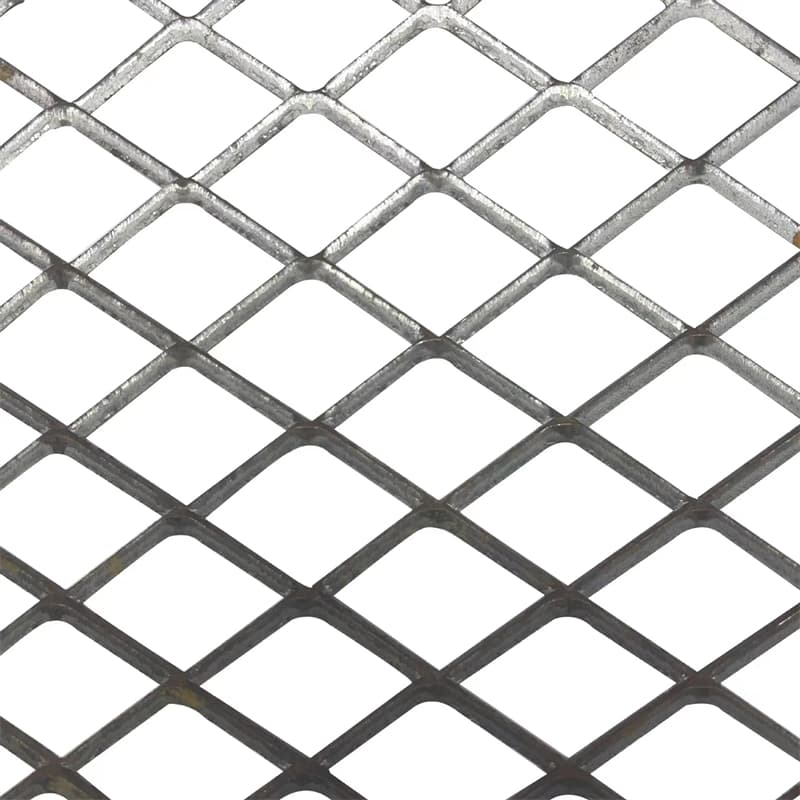

Stainless Steel Expanded Metal 4×8

Attribute	Specification / Range	Description
Sheet Size	4×8 ft (48″ × 96″) / 1220×2440 mm	Standard size, can be cut to custom dimensions
Material	304 / 304L / 316 / 316L stainless steel,	Corrosion-resistant, suitable for indoor, outdoor, and industrial applications
Surface Type	Raised / Flattened	Raised for added strength and anti-slip; Flattened for decorative or加工 purposes
Thickness / Wire Gauge	#16 – #6 gauge (0.0625″ – 0.192″ / 1.6 – 4.9 mm)	Covers light to heavy-duty applications; choose according to load and use
Mesh Size (LWD × SWD)	Light Duty: 1/4″ – 1/2″ × 1/8″ – 1/4″ Medium Duty: 1/2″ – 1″ × 1/4″ – 1/2″ Heavy Duty: 1″ – 2″ × 1/2″ – 1″	Diamond-shaped openings; affects open area, strength, and load capacity. Suitable for ventilation, decoration, mid-load, or heavy industrial protection
Open Area (% Open Area)	30% – 75%	Higher open area → lighter, more ventilation; lower open area → stronger, more protective
Weight	1 – 5 lbs/ft²	Depends on thickness, mesh size, and material
Optional Features	Anti-slip, corrosion-resistant, cut-to-size, weldable	Customize surface type, material, and thickness according to application

Note: For special requirements, we also offer custom services, allowing sheet size cutting, thickness adjustment, or selection of different materials and surface types according to project needs.



The mechanical properties shown are based on standard 304/316 stainless steel. Due to the stretching and expanding process, actual properties of expanded metal may vary slightly. For critical applications, please consult the supplier’s technical datasheet.

• Tensile Strength: 515 MPa (74,500 psi)

• Yield Strength: 205 MPa (29,500 psi)

• Elongation: 40%

• Brinell Hardness: ≤201

• Modulus of Elasticity: approximately 193 GPa (28,000 ksi)



Element	304 Stainless Steel (AISI 304)	316 Stainless Steel (AISI 316)
Carbon (C)	≤ 0.08%	≤ 0.08%
Manganese (Mn)	≤ 2.00%	≤ 2.00%
Silicon (Si)	≤ 1.00%	≤ 0.75%
Phosphorus (P)	≤ 0.045%	≤ 0.045%
Sulfur (S)	≤ 0.030%	≤ 0.030%
Chromium (Cr)	18.00 – 20.00%	16.00 – 18.00%
Nickel (Ni)	8.00 – 10.50%	10.00 – 14.00%
Molybdenum (Mo)	–	2.00 – 3.00%
Nitrogen (N)	≤ 0.10%	≤ 0.10%
Iron (Fe)	Balance	Balance

Excellent Corrosion Resistance

Stainless steel expanded metal contains at least 11% chromium, which forms a protective oxide layer to enhance corrosion resistance. 316 stainless steel adds molybdenum for even greater resistance to chlorides and acidic environments, making it ideal for marine and chemical applications.

High Strength and Lightweight

Expanded metal sheets keep the strength of the original material while reducing weight through stretching and expanding. For example, a 1mm-thick stainless steel sheet can exceed 520 MPa in tensile strength while weighing only 2.4 kg/m²—about 30% lighter than a conventional flat sheet.

Integrated Structure for Enhanced Stability

Expanded metal sheets are made from a single piece of metal with no welded joints or loose parts. This avoids weak points and ensures long-term structural integrity and stability.

Good Permeability and Aesthetic Appeal

The diamond-shaped openings allow air, water, light, and sound to pass freely, making the sheets suitable for ventilation, filtration, and decorative uses. Surfaces can be brushed or mirror-polished to enhance visual appeal.

Easy to Process and Install

Expanded metal sheets can be cut, bent, or welded to fit various designs. Their lightweight nature reduces transportation and installation costs, improving overall construction efficiency.
