Stainless steel surrounds us daily in our kitchens, buildings, and vehicles. This remarkable metal resists rust and maintains its shine for years. But have you ever wondered how manufacturers create this durable material? Let’s explore the fascinating journey from raw materials to finished stainless steel products.
The Basic Ingredients of Stainless Steel.
Stainless steel begins with a mix of iron and specific elements. The most important addition is chromium. All stainless steel contains at least 10.5% chromium. This key ingredient creates an invisible protective layer that prevents rust and corrosion.
Other important elements include:
- Nickel: Adds shine and improves formability.
- Molybdenum: Increases resistance to pitting.
- Carbon: Affects strength and hardness.
- Nitrogen: Enhances strength and corrosion resistance.
Step 1: Gathering Raw Materials.
The process starts with the collection of raw materials. Manufacturers often use recycled steel scrap as a base. They combine this with ferrochromium (an iron-chromium alloy) and other elements. Using recycled materials makes stainless steel production more environmentally friendly.

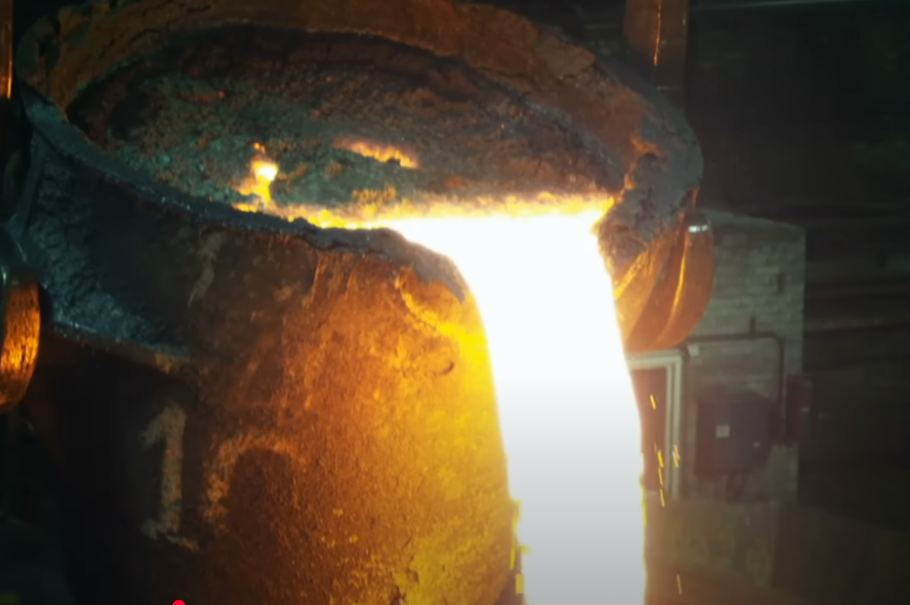

Step 2: Melting the Mix.
Workers load these materials into a large electric arc furnace. This furnace reaches temperatures above 2900°F (1600°C). The intense heat melts all components into a fiery liquid. This molten mixture now contains all the needed elements for stainless steel.

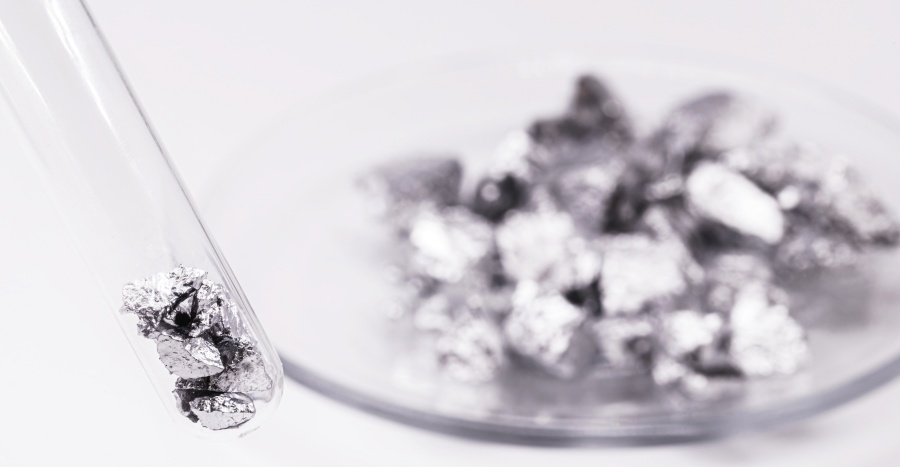

Step 3: Refining the Composition.
Next comes the refining stage. Technicians test the molten metal and adjust its composition. They add precise amounts of chromium, nickel, and other elements. This careful balancing creates specific types of stainless steel for different uses.

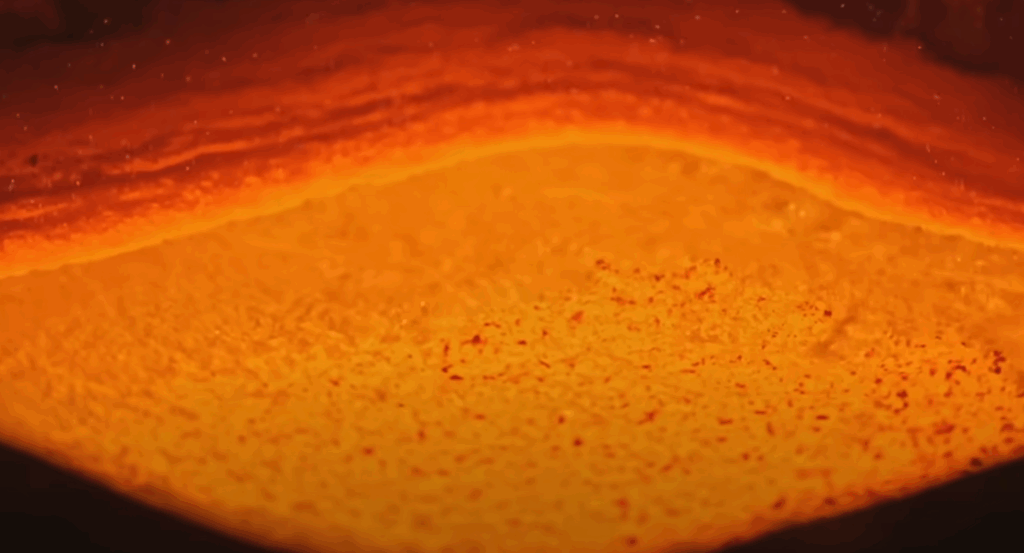

Step 4: Removing Impurities.
Oxygen bubbled through the mixture removes unwanted carbon. This process, called decarburization, creates cleaner, higher-quality steel. Special machines then remove other impurities like sulfur and phosphorus.

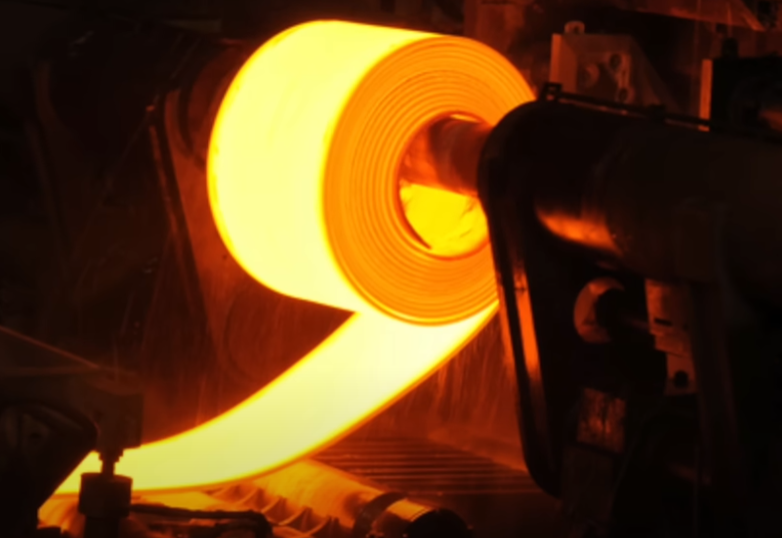

Step 5: Casting Into Shape.
The refined liquid steel pours into molds. These molds shape the metal into large slabs or billets (long, bar-shaped pieces). The metal cools and solidifies, ready for the next stage.

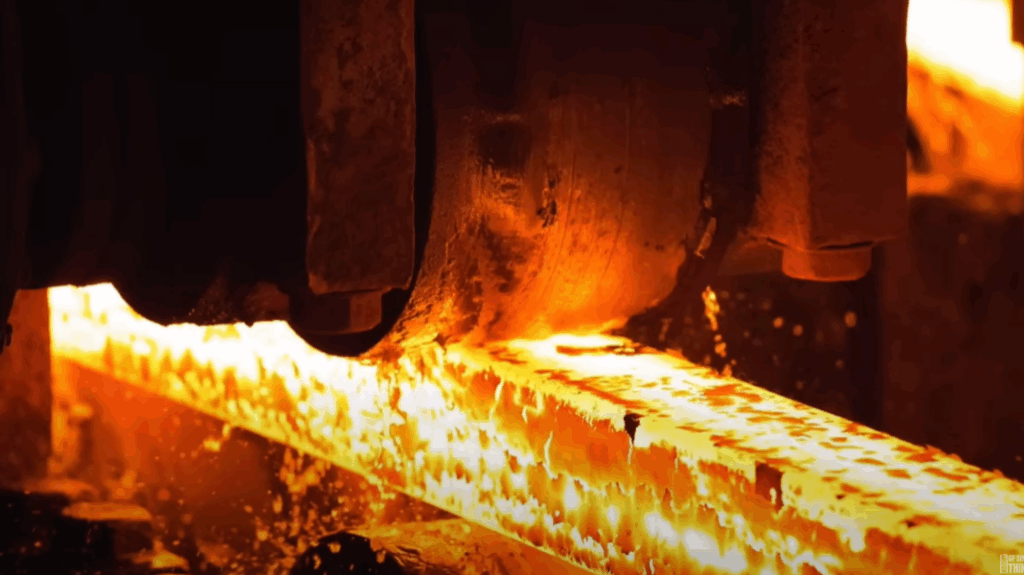

Step 6: Hot Rolling.
The solid metal now moves to rolling mills. Here, heavy machinery presses and rolls the metal while it’s still hot (around 2200°F/1200°C). This process shapes the steel into sheets, plates, bars, or wires. Hot rolling also improves the steel’s internal structure.

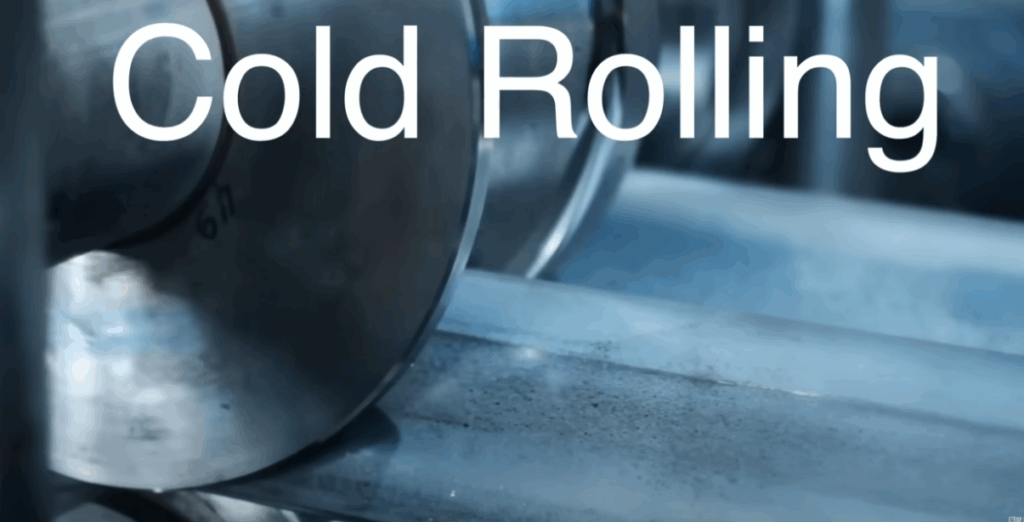

Step 7: Cold Working.
After cooling, some stainless steel undergoes cold working. Machines press and shape the steel at room temperature. This process increases strength and creates a smoother surface finish. The steel may pass through rollers multiple times to reach the desired thickness.
Step 8: Heat Treatment.
Heat treatment follows to relieve internal stress and enhance properties. Workers place the steel in special furnaces at specific temperatures. This process, called annealing, makes the steel more workable and prevents cracking.
Step 9: Surface Finishing.
The final stage focuses on appearance and texture. Surface treatments include:
- Mechanical polishing for a mirror-like finish.
- Brushing for a lined appearance.
- Bead blasting for a matte finish.
- Electrolytic polishing for ultra-smooth surfaces.
The End Result.
After these steps, the stainless steel is ready for use. Different grades serve different purposes:
- Type 304: Common in kitchen appliances.
- Type 316: Used in marine environments.
- Type 430: Found in automotive trim.
- Type 420: Perfect for knife blades.
From raw elements to shiny finished products, stainless steel manufacturing combines science, precision, and craftsmanship. This versatile material continues to play a crucial role in our modern world, offering strength, beauty, and lasting durability.
