When buyers purchase steel pipes, pipe schedule and wall thickness are often treated as the same thing. They are related, but they are not identical. Pipe schedule is a standardized designation used to classify wall thickness for a given nominal pipe size. Wall thickness is the actual measured thickness of the pipe wall, usually stated in millimeters or inches.
This difference matters in real procurement. The same schedule number can have different wall thicknesses when the nominal pipe size changes. If the RFQ only says “Schedule 40 pipe” without a pipe size, outside diameter, wall thickness, standard, or tolerance, suppliers may not quote the same product. This guide explains why schedule numbers confuse buyers, how wall thickness affects pipe selection, and what information should be included in a pipe RFQ.
Why Pipe Schedule Confuses Buyers
Pipe schedule is not a direct wall thickness value. It is a standard code used together with nominal pipe size. Schedule 40, Schedule 80, and other schedule numbers describe a thickness series, but the actual wall thickness depends on the pipe size and the applicable standard.
For example, a 6-inch nominal pipe size does not mean the pipe outside diameter is exactly 6 inches. In common NPS systems, NPS 6 has an actual outside diameter of 6.625 inches. NPS 8 has an actual outside diameter of 8.625 inches. Because nominal size and actual outside diameter are not always the same, buyers should not rely on the schedule number alone.
Nominal pipe size vs actual outside diameter
Nominal Pipe Size, or NPS, is a reference size. It is widely used in North American pipe specifications, but it does not always equal the actual outside diameter. The actual OD must be checked against the relevant pipe standard or dimension table.
This is one of the most common causes of order mistakes. A buyer may request a pipe based on the nominal size, while the supplier checks the actual OD and schedule table. If both parties do not use the same standard, the quoted dimensions may not match the project requirement.
Schedule number vs wall thickness
The schedule number indicates a wall thickness category, not a universal wall thickness value. Wall thickness is the actual value, such as 3.38 mm, 5.49 mm, or 8.18 mm. To identify the correct wall thickness, buyers must know both the nominal pipe size and the schedule.

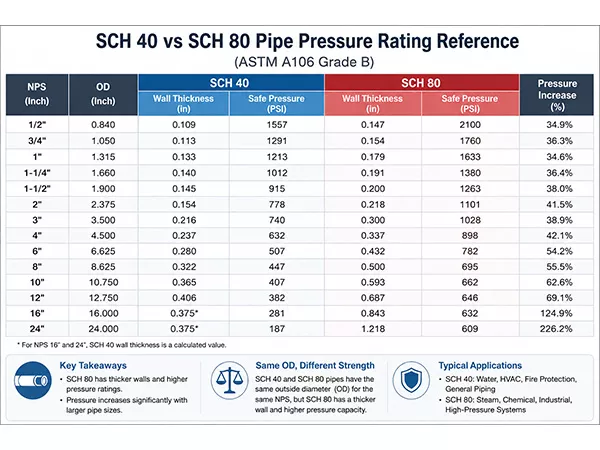

Table 01: Same Schedule 40 with Different Wall Thickness Values.
| Pipe Size | Schedule | Wall Thickness |
|---|---|---|
| 1 in | 40 | 3.38 mm |
| 3 in | 40 | 5.49 mm |
| 8 in | 40 | 8.18 mm |
Why the same schedule changes by pipe size
The same schedule changes with pipe size because schedule numbers are not uniform measurements. They are tied to pipe size, pressure design, and standardized dimension tables. Schedule 40 for a small pipe does not have the same wall thickness as Schedule 40 for a larger pipe.
For this reason, buyers should treat pipe schedule as a reference designation and verify the actual wall thickness before confirming an order.
How Wall Thickness Affects Pipe Selection
Wall thickness directly affects pressure performance, service life, fabrication cost, weight, and transportation cost. If the wall is too thin for the service condition, the pipe may fail, leak, or deform. If the wall is unnecessarily thick, the project may pay for extra material, welding time, and freight cost without gaining practical benefit.
Table 02: Key Factors Affecting Pipe Wall Thickness Selection.
| Selection Factor | Effect on Wall Thickness |
|---|---|
| Pressure | Higher pressure usually requires thicker wall |
| Temperature | Higher temperature may require thicker wall or stronger material |
| Corrosion | Severe corrosion may require added corrosion allowance |
| Mechanical Load | Higher load may require thicker wall |
| Pipe Diameter | Larger diameter often requires careful thickness verification |
| Material Strength | Higher strength may allow thinner wall in some designs |
| Design Code | Defines minimum required thickness |
| Corrosion Allowance | Adds extra thickness for service life |
| Service Life | Longer service life may require more allowance |
| Weight Limitation | Lower weight may require thinner wall or stronger material |
| Project Cost | Thicker wall increases material, fabrication, and freight cost |
Pressure performance
Pressure performance is one of the main reasons for specifying wall thickness. Higher pressure usually requires thicker pipe walls, depending on the material strength, temperature, design code, corrosion allowance, and safety factor. For low-pressure service, an overly thick pipe may increase cost without improving the project outcome.
Welding and fabrication
Wall thickness also affects welding and fabrication. Thinner walls are usually easier and faster to weld. Thicker walls may require more filler material, more heat input control, bevel preparation, multiple welding passes, and additional inspection. This can increase fabrication time and cost.
Weight, cost, and shipping
A thicker wall means more steel per meter. This increases pipe weight, material cost, handling cost, and shipping cost. For export orders, weight also affects container loading, inland transport, port charges, and sea freight. Buyers should choose a wall thickness that meets the engineering requirement without unnecessary over-specification.
How to Specify Pipe Wall Thickness in RFQs
A clear RFQ helps suppliers quote the right pipe and reduces delays caused by unclear specifications. For pipe orders, the RFQ should define the size, schedule or wall thickness, standard, tolerance, testing requirement, and documents required for shipment.
NPS and schedule
If the project uses pipe schedule, include both the nominal pipe size and schedule number. For example, write “NPS 4, Schedule 40 pipe” instead of only “Schedule 40 pipe.” This gives the supplier enough information to identify the correct dimension table.
OD and wall thickness
Because different markets may use NPS, DN, OD, or metric wall thickness, it is safer to include the actual outside diameter and wall thickness when possible. This is especially important for international purchasing, replacement projects, and orders involving different standards.
Tolerance and testing requirements
Tolerance should not be ignored. Wall thickness tolerance, outside diameter tolerance, length tolerance, straightness, and ovality may all affect installation. For critical applications, buyers should also specify testing requirements such as ultrasonic testing, leak testing, eddy current testing, or other inspection methods required by the project.
Common Mistakes in Pipe Orders
Using tube dimensions for pipe orders
Pipes and tubes are often described differently. Tubes are commonly ordered by outside diameter and wall thickness. Pipes are commonly ordered by nominal pipe size and schedule. Mixing tube and pipe dimension language can lead to quotation errors and delivery disputes.
Ignoring tolerance requirements
Even when the nominal size and schedule are correct, tolerance can still affect whether the pipe fits the application. Different standards may allow different dimensional tolerances. If the project requires tight fit-up, machining, welding, or assembly, tolerance should be written clearly in the RFQ.
Selecting schedule without checking application
Some buyers select a schedule number only because it is commonly used. This can be risky. The correct wall thickness should be based on pressure, temperature, corrosion, mechanical load, material strength, design code, service life, and cost balance.
RFQ Checklist for Pipe Schedule and Wall Thickness
Before sending a pipe inquiry, buyers can use the following checklist to reduce misunderstanding:
- Pipe standard, such as ASTM, ASME, EN, JIS, or GB
- Nominal pipe size or DN size
- Actual outside diameter, if known
- Schedule number, such as Schedule 40 or Schedule 80
- Actual wall thickness in mm or inches, if required
- Material grade and manufacturing method
- Length and quantity
- Dimensional tolerance requirements
- Pressure, temperature, corrosion, or application conditions
- Testing requirements and inspection documents
- Packing, marking, and shipping requirements
FAQ About Pipe Schedule and Wall Thickness
Is pipe schedule the same as wall thickness?
No. Pipe schedule is a standardized designation. Wall thickness is the actual measured value. The actual wall thickness depends on the pipe size and schedule table.
Can the same Schedule 40 pipe have different wall thickness?
Yes. Schedule 40 wall thickness changes with nominal pipe size. For example, Schedule 40 for a 1-inch pipe is not the same wall thickness as Schedule 40 for an 8-inch pipe.
What should buyers write in an RFQ?
Buyers should write the pipe standard, NPS or DN, schedule, actual OD and wall thickness if available, material grade, tolerance, testing requirements, quantity, and certificate requirements.
Conclusion
Pipe schedule and wall thickness are closely related, but they are not the same. Pipe schedule is a standardized thickness designation used with nominal pipe size, while wall thickness is the actual measured value. The same schedule can represent different wall thicknesses when the pipe size changes.
For procurement, buyers should not rely on schedule alone. A clear RFQ should include NPS or DN, schedule, actual OD and wall thickness when possible, tolerance, standard, testing, and certificate requirements. This helps suppliers quote accurately and helps buyers avoid wrong pipe dimensions, delays, and unnecessary cost.
