ASTM A480 is an important specification for stainless steel plate, sheet, and strip products. It covers general requirements related to dimensions, quality, testing, and ordering information. For buyers, two of the most important topics in ASTM A480 are thickness tolerance and flatness tolerance.
These tolerances define the acceptable dimensional variation in stainless steel material. If thickness or flatness is outside the required range, the material may cause problems during cutting, bending, forming, welding, machining, or assembly. This guide explains why ASTM A480 tolerances matter, which items buyers should specify, how nominal thickness differs from minimum thickness, and how to avoid common purchase order mistakes.
Why ASTM A480 Tolerances Matter in Stainless Steel Sheet and Plate Orders
Dimensional tolerance is a key part of stainless steel sheet and plate procurement. It defines how much a measurement may vary from the ordered size or standard requirement. For stainless steel sheet, plate, and strip, ASTM A480 helps buyers and suppliers use a common tolerance basis.
Thickness variation and final product performance
Thickness variation is the difference between the ordered thickness and the actual measured thickness. Some variation is normal in rolling and processing, so ASTM A480 defines acceptable tolerance limits. However, excessive variation can affect strength, weight, formability, welding quality, and final product performance.
If the material is too thin, it may not meet the design requirement or corrosion allowance. If it is too thick, it may increase weight, cost, and forming difficulty. Buyers should confirm whether standard ASTM A480 tolerance is acceptable or whether a tighter project-specific tolerance is required.
Flatness and fabrication accuracy
Flatness describes how well a sheet or plate remains level across its surface. Stainless steel material may become wavy, warped, or distorted during rolling, cooling, leveling, cutting, or handling. Poor flatness can affect laser cutting, shearing, machining, welding, bending, and assembly.
For many fabrication projects, flatness can be just as important as thickness. A sheet or plate may meet thickness requirements but still create problems if it does not lie flat enough for processing.
How tolerance affects cost and lead time
Standard ASTM A480 tolerances are usually easier and more economical for mills and processors to meet. Tighter tolerance requirements may require additional leveling, grinding, inspection, processing, or selection. This can increase cost and extend delivery time. Buyers should request tighter tolerances only when the application requires them.

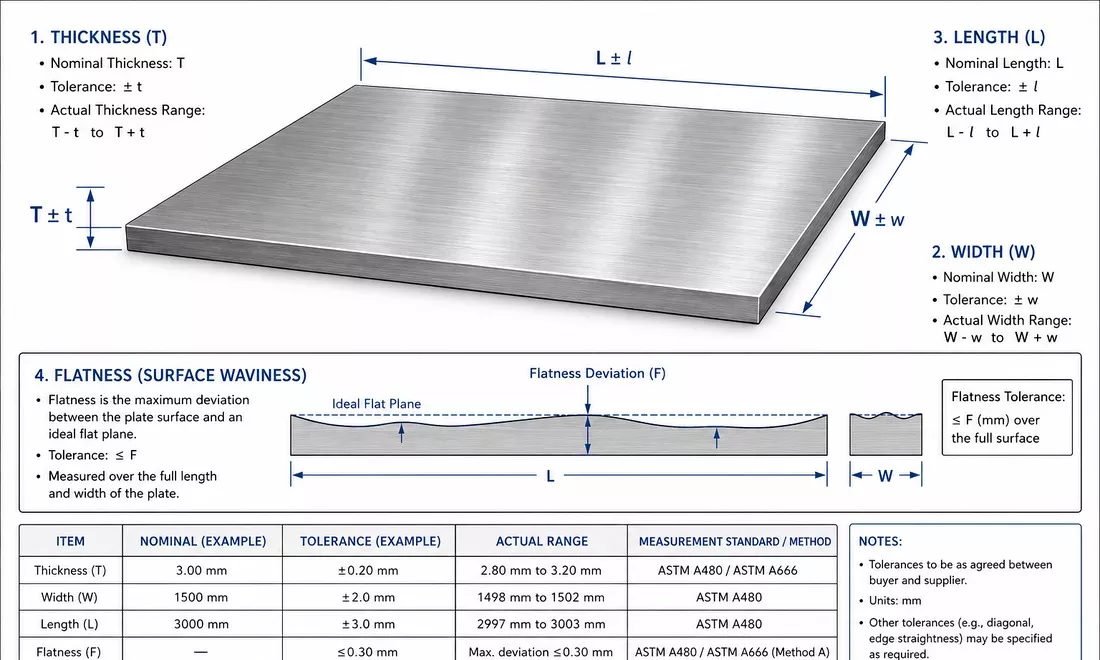

Main ASTM A480 Tolerance Items Buyers Should Specify
ASTM A480 covers multiple dimensional and quality items. Even when the standard is listed, the purchase order should still make the required size, tolerance, inspection, and acceptance requirements clear.
Table 01: Key ASTM A480 Tolerance Items for Stainless Steel Sheet and Plate Orders.
| Tolerance Item | Purpose | Impact if Ignored |
|---|---|---|
| Thickness | Controls material size and weight | Strength, forming, or cost issues |
| Width | Supports cutting and nesting accuracy | Extra waste or insufficient stock |
| Length | Controls part sizing and cut-to-length orders | Recutting or production delay |
| Flatness | Controls surface levelness | Fabrication and fit-up problems |
| Edge condition | Controls edge quality and safety | Handling, appearance, or welding issues |
Thickness tolerance
Thickness tolerance is the permitted difference between the specified thickness and the actual measured thickness. ASTM A480 thickness tolerances depend on the product form, thickness range, width, and other order conditions. Buyers should confirm whether nominal thickness tolerance is acceptable or whether minimum thickness is required by the application.
Width tolerance
Width tolerance controls the acceptable variation in material width. Small deviations may occur during rolling, slitting, trimming, or cutting. If the material is too narrow, it may not provide enough stock for cutting or forming. If it is too wide, it may require extra trimming and generate waste.
Length tolerance
Length tolerance defines the allowable difference between the ordered length and the actual supplied length. This is important for cut-to-length sheet and plate orders. Poor length control may require recutting, affect nesting plans, or cause production delays.
Flatness tolerance

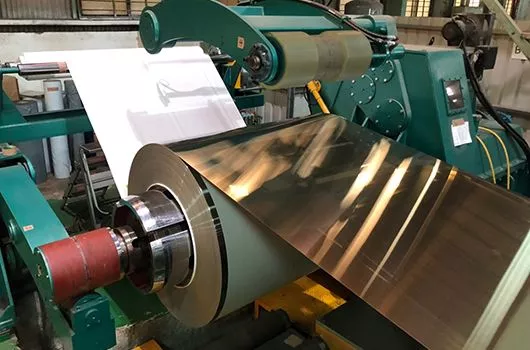

Flatness tolerance defines the allowed deviation from an ideal flat plane. It is affected by rolling, cooling, leveling, residual stress, and handling. Buyers should pay special attention to flatness when the material will be used for laser cutting, precision fabrication, visible panels, large welded structures, or tight assembly work.
Edge condition
Edge condition describes the quality and form of the material edges. Common edge types include mill edge, slit edge, sheared edge, and cut edge. Edge condition may affect handling safety, appearance, welding preparation, and downstream fabrication.
Nominal Thickness vs Minimum Thickness
One common procurement issue is the difference between nominal thickness and minimum thickness. Buyers may order material by a nominal thickness, but the supplier may deliver material within the allowed ASTM A480 tolerance range. This can be acceptable under the standard, but it may not meet every design requirement.
What nominal thickness means

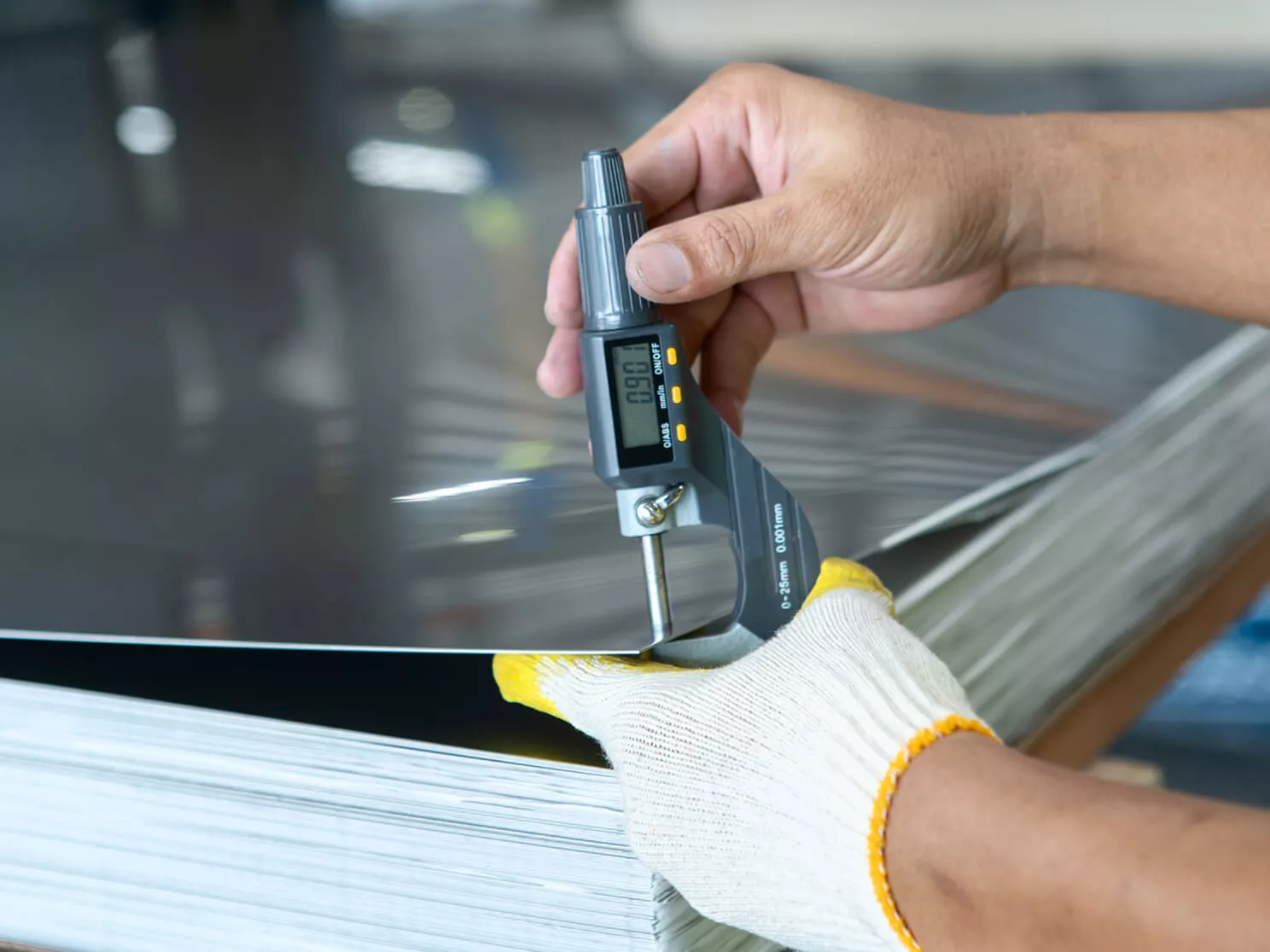

Nominal thickness is the thickness stated in the purchase order, drawing, or specification. For example, a buyer may order 3.0 mm stainless steel sheet or 12 mm stainless steel plate. Nominal thickness is a designated size, not a promise that every measured point will be exactly that value.
Why minimum thickness matters
Minimum thickness is the smallest acceptable thickness after considering tolerance. It is important when the material must meet structural, pressure, corrosion, or service-life requirements. If the actual thickness falls too low, the material may not provide enough strength or corrosion allowance.
How to avoid misunderstanding in purchase orders
To avoid disputes, buyers should state whether the order is based on nominal thickness or minimum thickness. If minimum thickness is critical, it should be written clearly in the RFQ and purchase order. Buyers should also specify the inspection method, measuring points, acceptance criteria, and reference standard.
Common Stainless Steel Sheet and Plate Tolerance Mistakes
Only specifying grade
A stainless steel grade such as 304, 316, or 430 defines chemical composition and mechanical properties. It does not fully define thickness, width, length, flatness, or edge condition. A purchase order that only states grade and size may still be incomplete.
Confusing gauge and millimeter thickness
Gauge systems can be confusing because gauge numbers do not always represent the same thickness across materials or markets. Buyers should avoid using gauge alone for international orders. It is safer to state the actual thickness in millimeters or inches and define the required tolerance.
Ignoring flatness requirements
Some buyers focus only on thickness and size while ignoring flatness. This can cause problems in cutting, bending, welding, assembly, and surface appearance. If flatness is important for the final application, it should be specified clearly in the RFQ.
RFQ Checklist for ASTM A480 Sheet and Plate Orders
A clear RFQ helps suppliers quote correctly and reduces later disputes. Buyers should include the following information when ordering stainless steel sheet, plate, or strip under ASTM A480:
- Material grade, such as 304, 304L, 316L, 430, or other stainless steel grade
- Applicable standard, such as ASTM A480 and the related product standard
- Product form: sheet, plate, strip, coil, or cut-to-length material
- Nominal thickness and whether minimum thickness is required
- Width, length, and quantity
- Thickness tolerance, width tolerance, length tolerance, and flatness requirement
- Edge condition, such as mill edge, slit edge, sheared edge, or cut edge
- Surface finish requirement, such as 2B, No.1, BA, No.4, or other finish
- Inspection method, measuring points, and acceptance criteria
- Documents required, such as MTC, dimensional inspection report, or third-party inspection
- Packing, marking, and shipping requirements
FAQ About ASTM A480 Thickness and Flatness Tolerances
Does ASTM A480 define exact thickness?
No. ASTM A480 defines allowable tolerance ranges. The actual measured thickness may vary within the accepted limits unless a stricter requirement is agreed in the order.
Is nominal thickness the same as minimum thickness?
No. Nominal thickness is the ordered or designated thickness. Minimum thickness is the lowest acceptable measured thickness after tolerance is considered. If minimum thickness is important, it should be specified clearly.
Why is flatness important for stainless steel plate and sheet?
Flatness affects cutting, forming, machining, welding, assembly, and final appearance. Poor flatness may cause fit-up problems, fabrication errors, or additional leveling work.
Conclusion
ASTM A480 thickness and flatness tolerances are important for stainless steel sheet, plate, and strip orders. They help define acceptable dimensional variation and support consistent manufacturing, inspection, and fabrication results.
Buyers should not specify only the grade. A complete RFQ should include thickness, width, length, flatness, edge condition, surface finish, tolerance requirements, inspection method, and documents. Clear ordering information helps suppliers quote accurately and helps buyers avoid production delays, quality disputes, and unnecessary cost.
